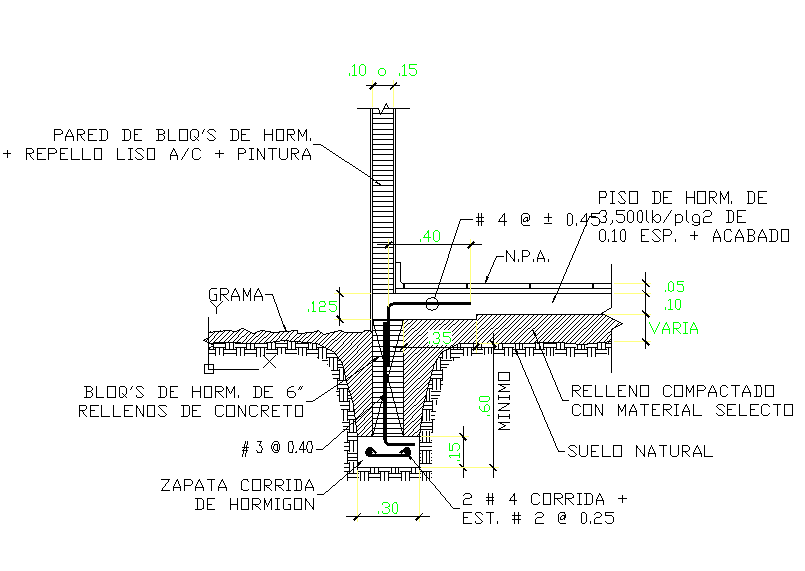

Concentric Foundation Shoe Detail With Concrete Block Wall Layout

This AutoCAD drawing presents the construction detail of a concentric foundation shoe supporting a concrete block wall with reinforced footing and floor slab integration. The section clearly illustrates the structural arrangement, including a continuous concrete footing measuring approximately 0.30 m in width supporting a reinforced column base and block masonry wall. The drawing shows concrete blocks of 6-inch thickness with concrete filling and plaster finish on the wall surface. Reinforcement bars such as #3 reinforcement at 0.40 spacing and two #4 longitudinal bars with stirrups at 0.25 spacing are included to provide structural strength to the foundation system.
