Vidal 3D Residential House Model With Terrain And Site Layout

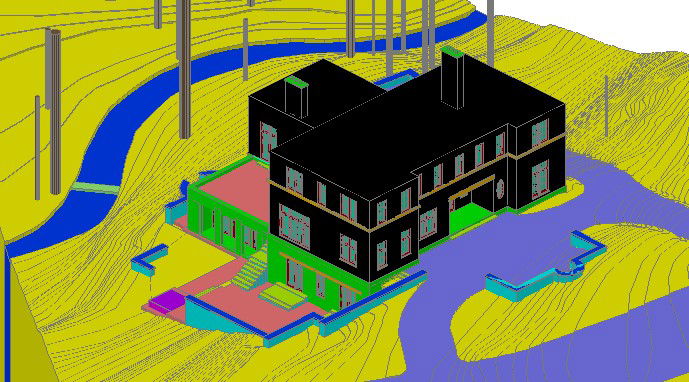

This AutoCAD drawing presents a detailed Vidal 3D residential house model showing the building structure integrated with the surrounding terrain and site layout. The 3D model illustrates a multi-level residential building with clearly defined walls, windows, doors, roof structure, and chimney elements. The design includes front entry steps, terrace space, and boundary edges around the house platform. The model also shows terrain contour lines surrounding the structure, which represent the natural ground levels and topographic variation across the site. A nearby water channel and site circulation path are also illustrated, showing how the house is positioned within the landscape environment.
