Reticular Slab Structural Sections With 40 cm Depth Details.

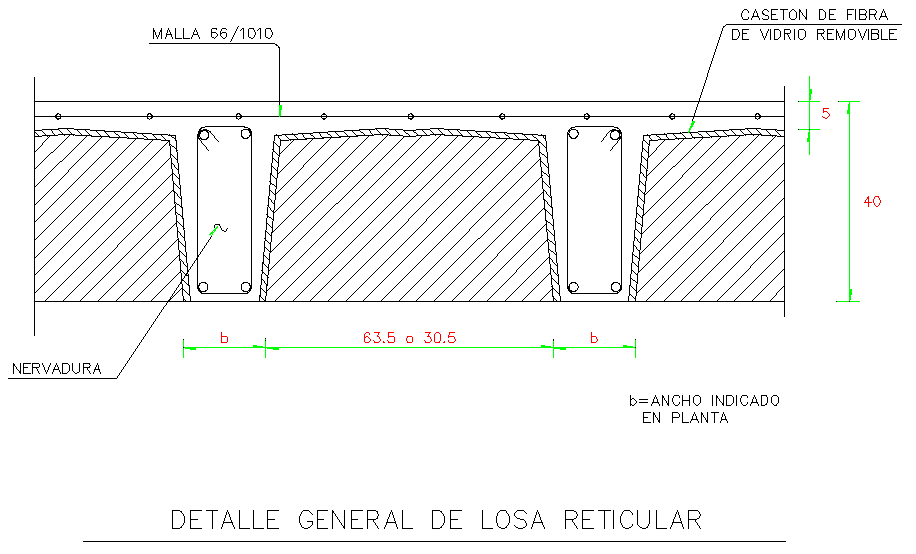

This drawing presents a reticular slab structural section with detailed construction layers prepared in AutoCAD files for reinforced concrete slab design. The slab system includes removable fiberglass coffers forming a reticular grid structure that reduces slab weight while maintaining structural strength. The section clearly shows the ribbed slab configuration with reinforced concrete ribs and hollow block spaces between structural supports. A welded reinforcement mesh Malla C6 1010 is placed on the slab top to improve structural stability and load distribution. The drawing indicates a slab depth of 40 cm with a 5 cm top concrete layer that forms the structural compression zone of the slab system.
