Perimeter Wall Design with Elevation and Gate Section Detail

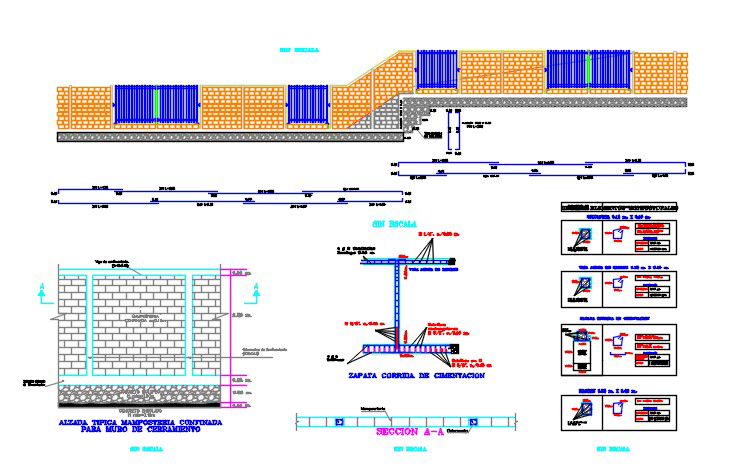

Perimeter wall design with elevation and gate section detail is essential for creating boundary walls around properties or construction sites. This AutoCAD DWG file offers comprehensive details for designing a perimeter wall, including elevation views, sectional elevations, and the integration of gates into the wall structure. The design is focused on walls that serve as a boundary for land, providing privacy, security, and demarcation of property lines. It includes information on wall height, thickness, material specifications, and the structural design of gates and entry points.
