Cavity Wall Detail with Brick Sections and Structural Construction

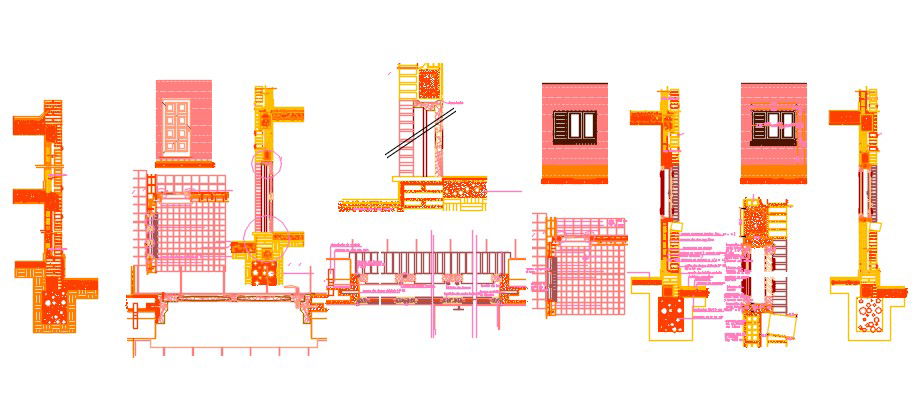

This AutoCAD DWG file includes detailed cavity wall designs, showcasing the layout plan, sectional elevation of the cavity wall, and brick wall elevations. The drawing illustrates how cavity walls, formed from two layers of brickwork or blockwork with a gap between them, are constructed. These walls are essential for modern building designs, providing insulation and soundproofing. The file also highlights important construction details, ensuring proper wall installation for strength and stability. Cavity walls are often used for buildings where thermal insulation and moisture control are critical. With this detailed drawing, architects and engineers can efficiently integrate cavity wall designs into their construction projects.
