Constructive Section of Cavity Wall Detail for Building Floors

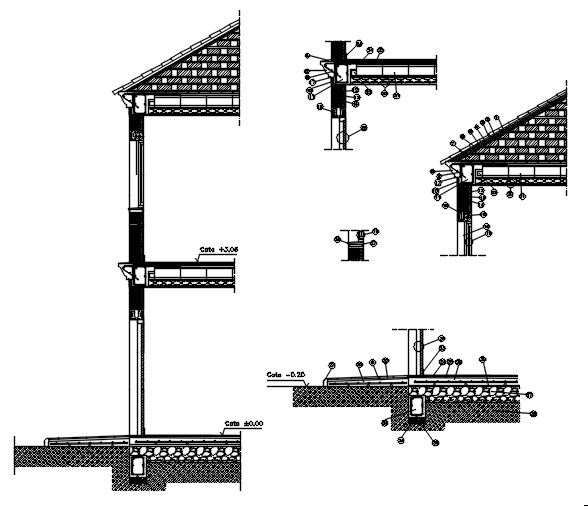

This AutoCAD DWG file provides detailed drawings of the constructive section of cavity wall construction. It includes sectional elevations of the cavity wall at different floor levels, showcasing all the necessary details for building the wall, including brickwork, insulation layers, and structural design specifications. The file offers in-depth views of the wall's construction, including the layout and measurements, useful for architects and engineers involved in residential and commercial projects. By reviewing the sectional views and details, users can ensure precise cavity wall installation, helping them build durable and efficient walls. This design detail is essential for any project that requires cavity wall construction, making it a crucial resource for professionals working with building designs.
