Contention Wall Plan Elevation and Section Detailing AutoCAD

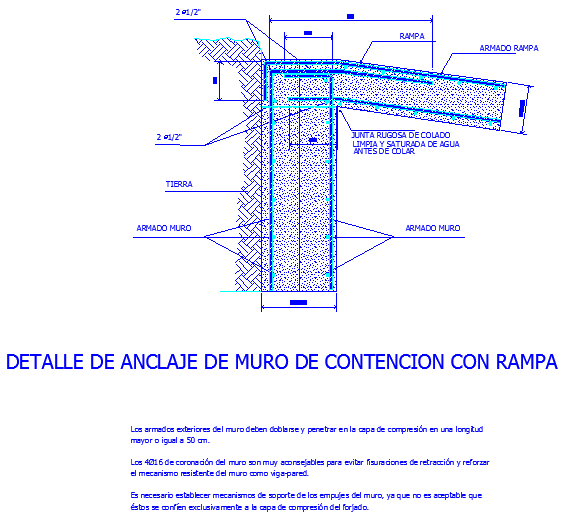

This AutoCAD DWG file provides detailed drawings of a contention wall, showing plan, elevation, and sectional views for precise architectural and structural reference. The drawing illustrates wall thickness, reinforcement bars, footing layout, and structural alignment. Architects, civil engineers, and builders can use this file to understand wall design, load distribution, and integration with surrounding structures for residential or commercial projects.

The DWG includes sectional details highlighting reinforcement placement, wall height, cross-section dimensions, and connection with foundation elements. Builders and designers can study these details to ensure correct installation, structural stability, and compliance with construction standards. This professional drawing serves as a reference for planning, technical detailing, and execution of contention walls using AutoCAD.
