Building Foundation Plan With Footing Section AutoCAD Drawing

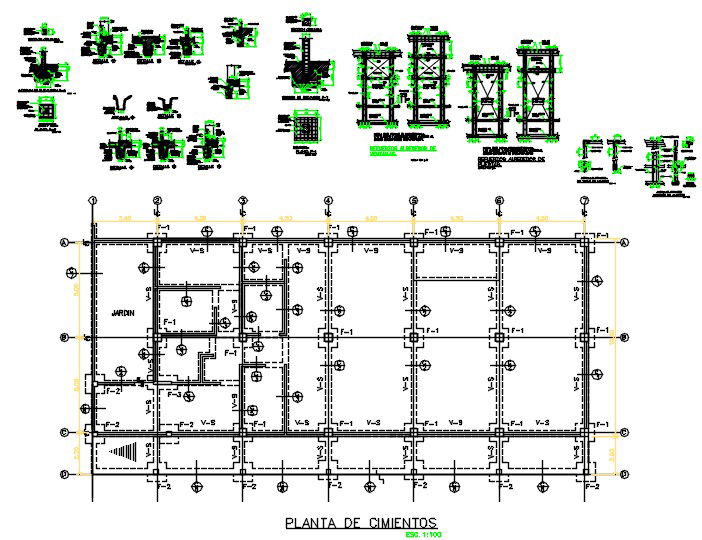

The Building Foundation Plan With Footing Section AutoCAD Drawing is available in DWG format. This structural drawing provides a detailed representation of the site plan layout, foundation plan, and structural arrangement of the building base system. The drawing clearly illustrates the foundation grid layout with column positions, footing placement, and structural alignment across the building plan. Dimension lines indicate spacing between structural axes, showing an approximate grid layout of 3.60 m to 5.40 m between columns, which helps engineers understand the structural planning and load distribution within the foundation system. The file also includes labeled foundation elements and reference marks used in construction documentation.
