Control Tower Design 3000mm Height 2500mm Stair Layout Structure

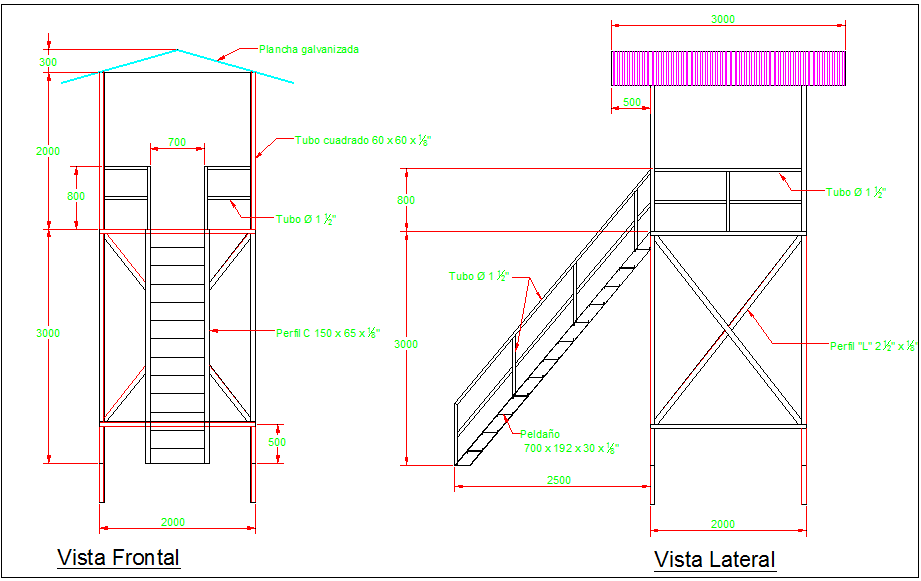

Control tower design drawing showing detailed front and lateral views with full structural layout and dimensional clarity. The tower height is defined as 3000mm with a platform level supported by square tube sections of 60 by 60 mm. The top roofing is designed using galvanized iron sheet with proper slope and 3000mm width coverage. Staircase access is clearly illustrated with a 2500mm length and step dimensions of 700 by 192 by 30 mm, providing safe vertical movement.
