Air Compressor Plan Elevation Mechanical Equipment CAD DWG Files

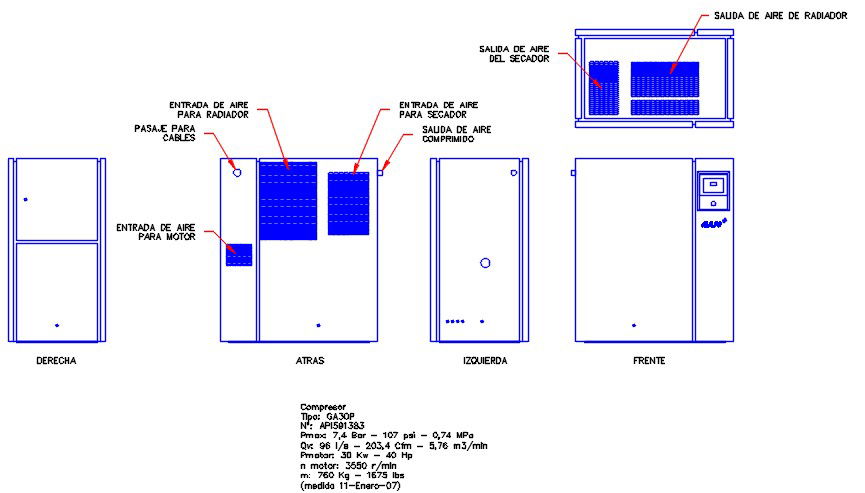

The Air Compressor Plan Elevation Mechanical Equipment CAD DWG drawing provides a detailed AutoCAD representation of an air compressor system used in mechanical and industrial layouts. This DWG file includes the plan view of the air compressor, which clearly illustrates the top layout of the equipment, its structural footprint, and spatial placement within mechanical or utility areas. The drawing also contains elevation views that help visualize the vertical structure, equipment components, and external configuration of the air compressor unit. These technical drawings are useful for understanding how air compressor equipment is arranged within workshops, industrial buildings, and service facilities.
