Sewer Bolster Detail Plan Section with Underground Pipe Layout

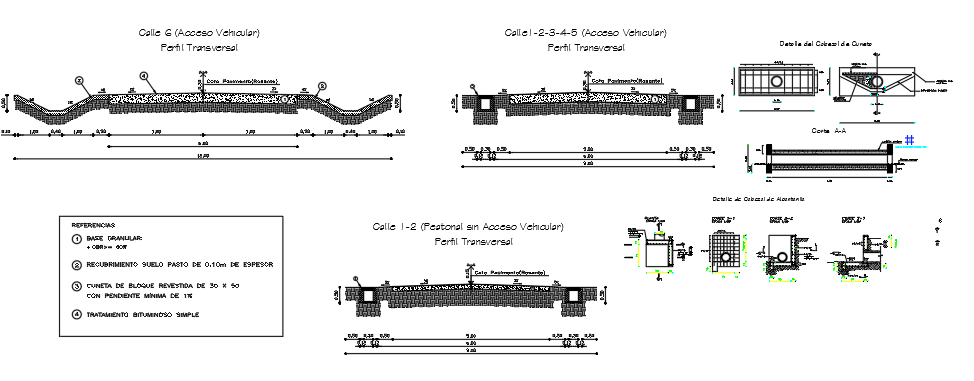

The Sewer Bolster Detail drawing provides a comprehensive AutoCAD layout illustrating the structural configuration and installation details of underground sewer pipes used for wastewater and drainage systems. The drawing includes detailed transverse profiles for different roadway conditions, including vehicular access roads and pedestrian pathways. Cross-sectional views show the structural layers above the sewer pipeline, such as pavement surface, granular base layer, and soil bedding that protect and support the underground pipe. The layout also presents clear dimensional measurements, including roadway widths of approximately 3.80 m to 8.00 m and structural edge supports designed to stabilize the sewer pipeline within the ground structure.
