100m Bridge Beam Flagstone Plan Section Elevation CAD Drawing

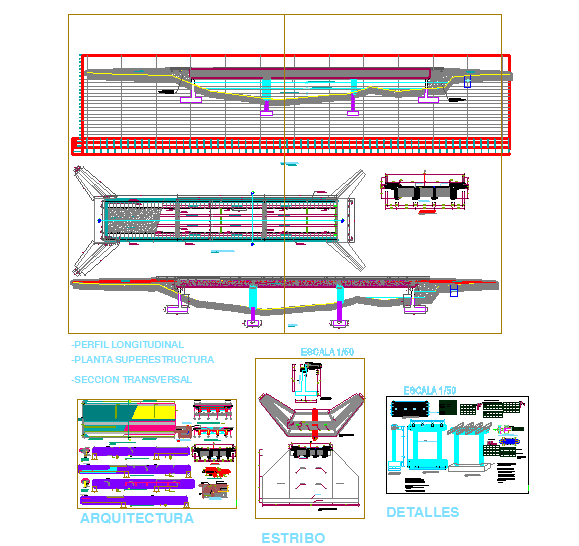

The 100m Bridge Beam Flagstone CAD drawing provides a comprehensive structural layout of a bridge beam system designed for a total span of 100 meters. The drawing includes the civil plan of the bridge showing the arrangement of the beam structure, deck alignment, and support placement along the bridge span. The plan clearly illustrates the superstructure layout with beam positioning and flagstone deck covering used for the bridge surface. The longitudinal profile presents the bridge beam alignment across the 100m span, supported by structural piers and abutments that distribute loads across the foundation system. The drawing also highlights the deck layers and surface structure used to maintain the durability and stability of the bridge.
