3D Pedestrian Bridge CAD Drawing with Stair and Railing Design

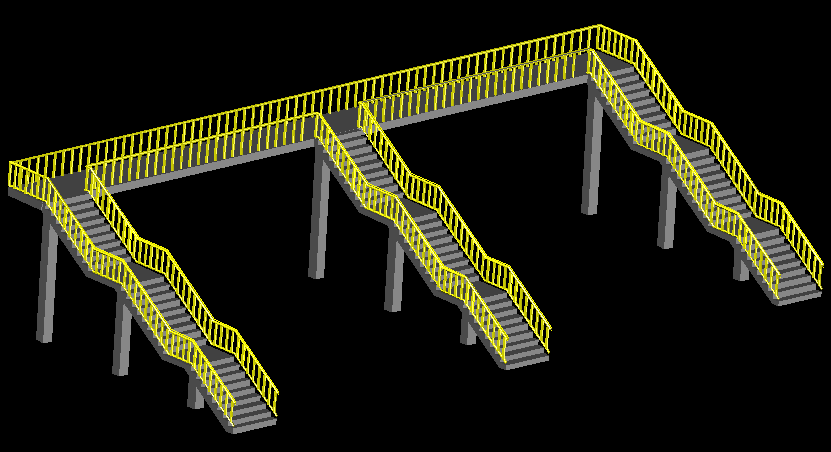

This 3D Pedestrian Bridge CAD drawing presents a highly detailed structural model featuring an elevated walkway supported by strong vertical columns and symmetrical staircases. The bridge design includes dual flight stairs with central landing areas, providing accessibility from both sides. Its guardrails, represented in yellow, ensure user safety while highlighting the visual structure of the pedestrian bridge.

The CAD drawing clearly illustrates the geometric precision, alignment, and material distribution, making it suitable for urban walkways, public crossings, and commercial site designs. Each section is modeled to display depth, proportion, and elevation balance. This file serves as an excellent resource for architects, civil engineers, and structural designers involved in 3D modeling, transport infrastructure, and public access bridge planning. With detailed measurements and accurate 3D rendering, it offers a complete understanding of stair configurations, support beams, and bridge framework suitable for design presentations or technical analysis. Visit cadbull.com for more advanced AutoCAD DWG files crafted for engineering and architectural excellence.
