perimeter wall section elevation reinforced cad drawings set

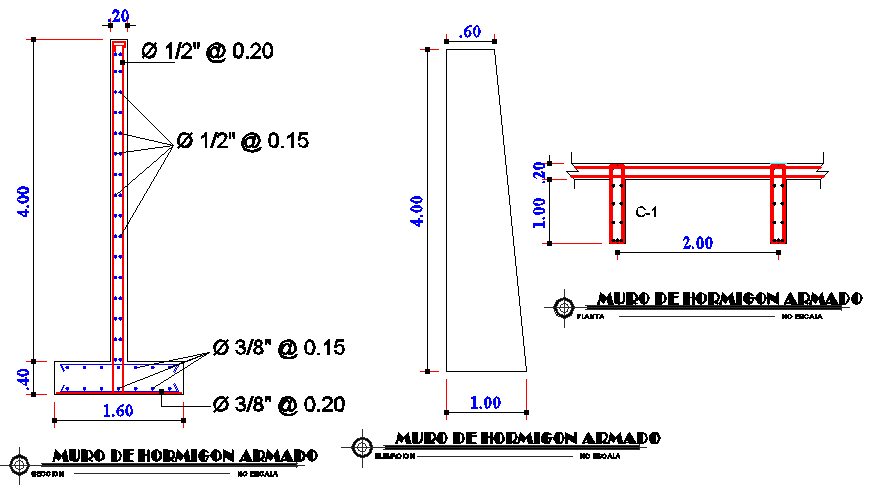

This perimeter wall section elevation reinforced cad drawing set includes detailed structural drawings of a reinforced concrete wall with precise 2D section and elevation views. The file showcases a wall height of 4.00 m, a base width of 1.60 m, and a top width of 0.60 m, along with footing and foundation details. Reinforcement specifications such as 1/2 inch bars at 0.20 m and 0.15 m spacing, along with 3/8 inch bars at 0.15 m and 0.20 m spacing, are clearly illustrated for accurate construction reference. The section drawings provide a clear understanding of structural composition, load distribution, and reinforcement placement.
