Refrigerator pipe detail drawing with dimension.
Description

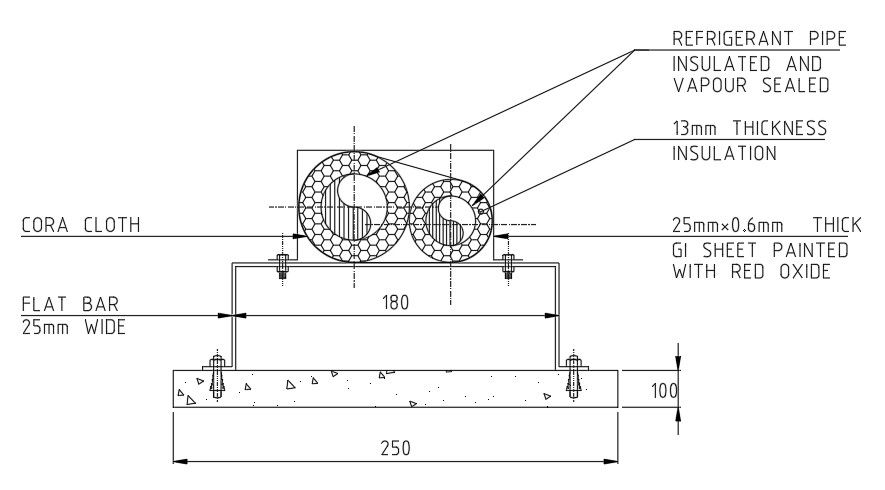

Detail drawing of refrigerator pipe with dimension, Cora clothes, flat bar (25mm)wide thick GI sheet painted with red oxide,(25mm x 0.6mm)
13mm thick insulation , refrigerator pipe insulated and vapor sealed. for more details download this file.
