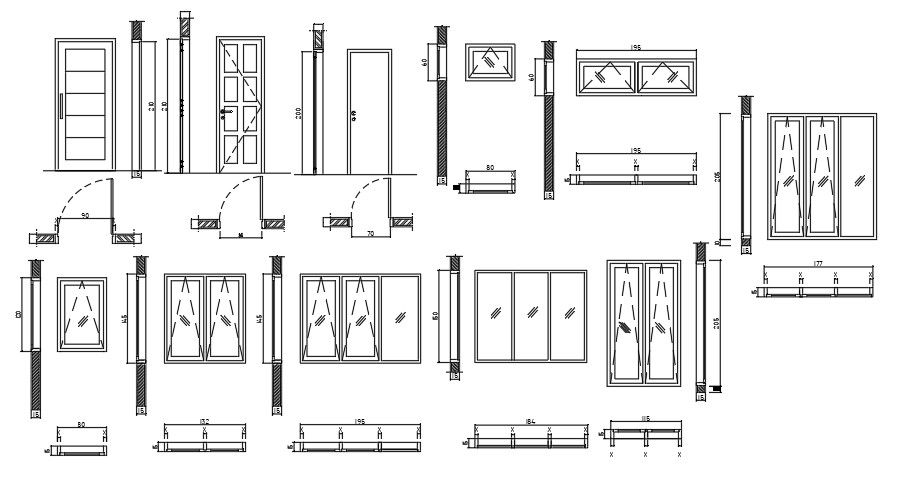

Section detail different types of door and window with framing detail

Here Section detail different types of door and window with framing detail The frame has three main parts: the sill, or horizontal strip along the bottom of the frame; the jamb, the vertical sides of the frame; and the head, the top horizontal strip on the frame. The sash also has several components. Stiles are the vertical sections of the sash. Rails are the horizontal sections. Also including Most steel doors are made of 18 gauge material, with the corresponding frame of 16 gauge steel Most steel doors are made of 18 gauge material, with the corresponding frame of 16 gauge steel. for more detail of Section detail different types of door and window with framing download this file.
