axial flow fan installation details

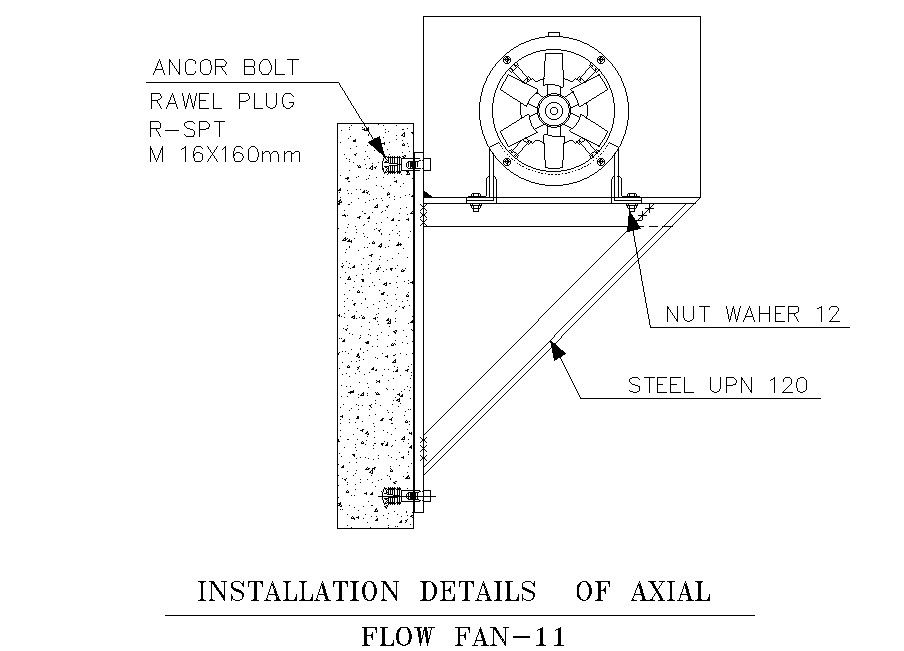

Here  axial flow  fan installation details , axial fan is a type of fan that causes gas to flow through it in an axial direction, parallel to the shaft about which the blades rotate. The flow is axial at entry and exit. The fan is designed to produce a pressure difference, and hence force, to cause a flow through the fan.The most basic part of an axial flow fan is the motor. Other than that it has ball bearings, blades, and impellers. The fan has a housing or an enclosure which protects it from external damage, spillage, shock, vibration,  In a typical axial fan, the effective progress of the air is straight through the impeller at a constant distance from the axis. The primary component of blade force on the air is directed axially from inlet to outlet and thus provides the pressure rise by a process that may be called direct blade action. including nut waher , steel UPN 12 , anchor bolt , ravel plug( 160mm x160mm ) for more details of axial flow  fan installation download this file .
