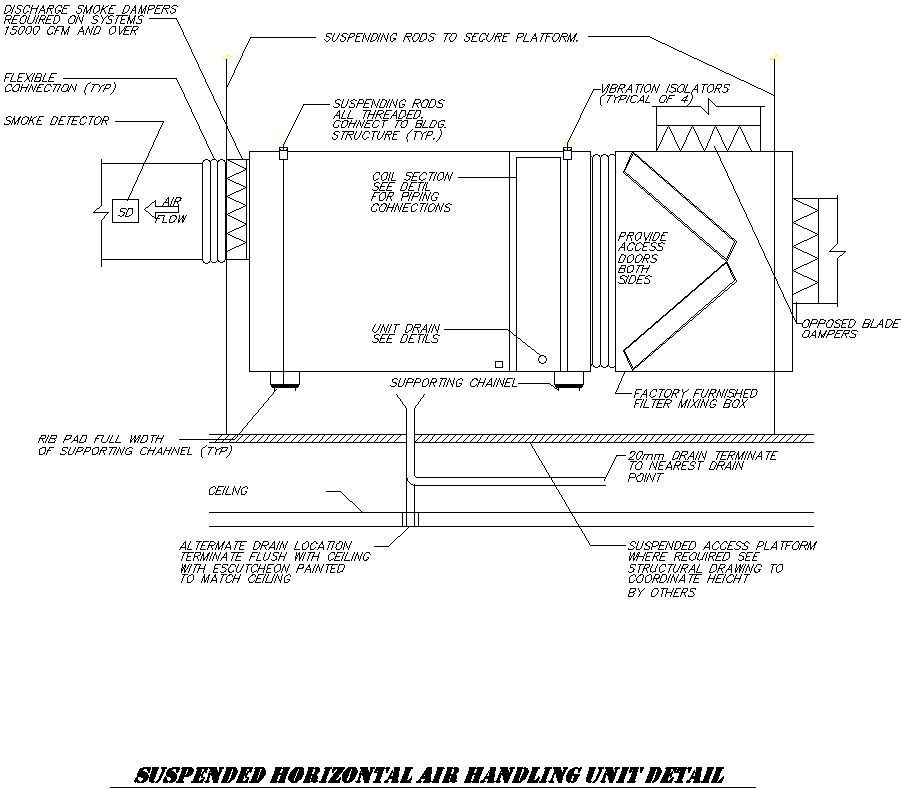

Suspended horizontal air handling unit details.

Here Suspended horizontal air handling unit details including unit drain , supporting channels , factory furnished filter box , provide access both side , vibration isolation flexible connection , smoke detector , discharge smoke damper , rib pad full width of supporting channels , 2omm  drain terminate to nearest point , suspending rods  all threaded connect to structure, opposed blade damper air handling unit — the 'blow-through' and the 'draw-through'. The blow-through AHU has a fan which blows the air through the mixing box, cooling coil and filters before it goes to the ducting network. The draw-through AHU can be vertical or horizontal. The AHU panels are manufactured in nominal thicknesses of 25mm and 50mm and are mounted on a frame composed of an aluminum profile which outlines the equipment edges precisely. for more details of Suspended horizontal air handling unit details. download this file.
