500 Bed Hospital AutoCAD DWG Plan with Sections and 3D Layout Design

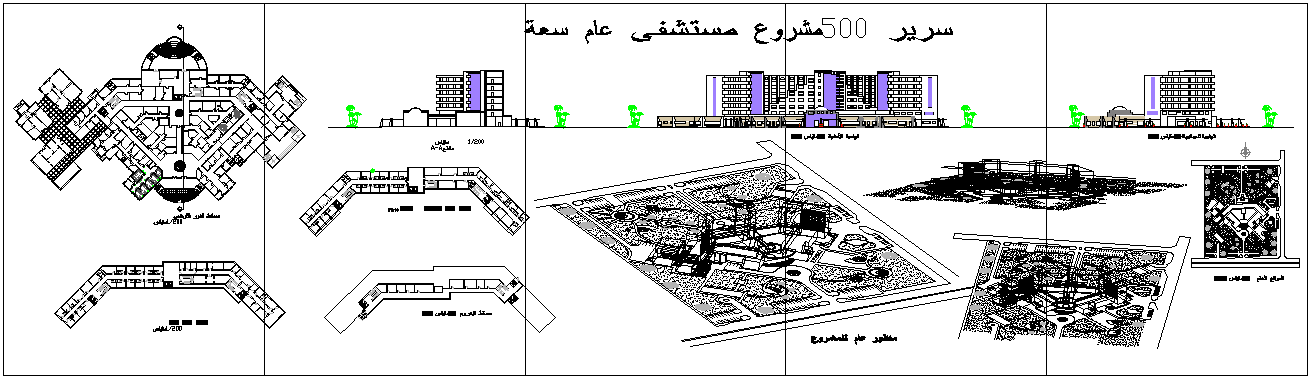

This hospital project AutoCAD DWG file presents a detailed architectural plan for a 500-bed general hospital. The drawing includes comprehensive floor plans, sections, and elevations designed with precision to meet healthcare infrastructure standards. The layout features patient wards, corridors, operating areas, administration blocks, and service zones, along with external landscaping and site planning elements. Each section of the file is meticulously labeled, providing a clear understanding of the hospital’s spatial organization and functional design.

Additionally, the DWG file showcases 3D rendered perspectives, giving a realistic view of the hospital’s structural massing and layout distribution. This plan is highly valuable for architects, civil engineers, and healthcare facility planners aiming to design efficient, large-scale medical facilities. It helps in visualizing circulation flow, emergency access, and departmental connectivity across the building. The AutoCAD DWG file stands as a resourceful tool for those looking to explore hospital architectural design in technical depth and scale.
