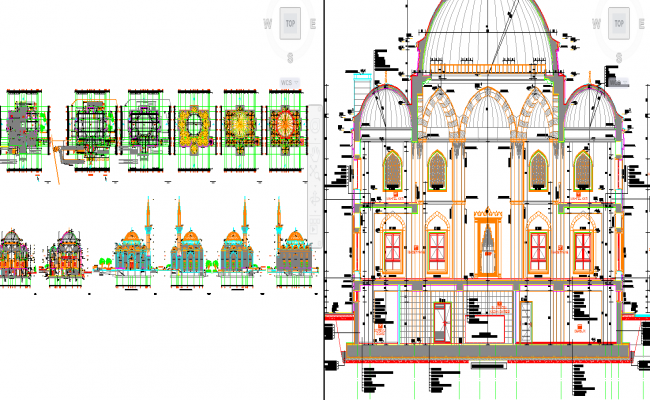

This Mosque AutoCAD DWG drawing presents a fully detailed <a href="https://cadbull.com/Cad-Architecture" rel="noopener noreferrer" target="_blank">architectural </a>layout, including complete floor plans, sections, and elegant elevations. The design showcases centerline drawings, dome geometry, arch openings, decorative facades, and minaret details with precise dimensioning. Each section of the mosque is carefully structured with accurate measurements for wall thickness, door openings, and window placements. The layout follows classical symmetry, providing a perfect balance between traditional Islamic architecture and modern design accuracy.This DWG file is an excellent reference for architects, civil engineers, and designers who specialize in mosque or cultural building designs. It features all structural elements, including the main prayer hall, dome heights, entrance detailing, and column alignment. The file also includes line annotations for easy understanding during the construction and modeling stages. The overall composition is ideal for architectural studies, design proposals, and 3D modeling of mosque projects. Its clean and detailed presentation helps users visualize the complete architectural form, from the foundation to the dome <a href="https://cadbull.com/Structure-detail" rel="noopener noreferrer" target="_blank">structure</a>.

Mosque AutoCAD DWG Plan with Architectural Sections and Elevations

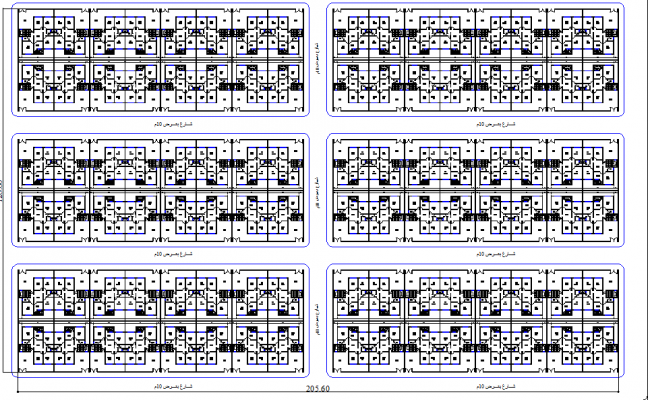

This Twin House AutoCAD DWG file features a detailed 2D <a href="https://cadbull.com/Cad-Architecture" rel="noopener noreferrer" target="_blank">architectural</a> plan showcasing symmetrical residential layouts with precise room configurations and structural dimensions. Each unit plan includes well-defined living spaces, bedrooms, kitchens, and service areas arranged with functional flow and proportional balance. The drawing measures approximately 205.60 meters in total site length, providing an accurate reference for housing project development and site utilization.The DWG file is ideal for architects, civil engineers, and designers working on twin housing <a href="https://cadbull.com/Projects" rel="noopener noreferrer" target="_blank">projects</a>, multi-family units, or cluster home developments. With its clear labeling, structured planning, and repetitive modular layouts, this design helps professionals visualize efficient land use while maintaining privacy and accessibility between homes. The plan is fully editable in AutoCAD, enabling quick customization for project-specific needs. This AutoCAD DWG drawing offers a professional base for urban residential design, real estate planning, and <a href="https://cadbull.com/Construction-Cad-Drawing" rel="noopener noreferrer" target="_blank">construction </a>documentation.

Twin House AutoCAD DWG Plan with Detailed 2D Layout and Dimensions

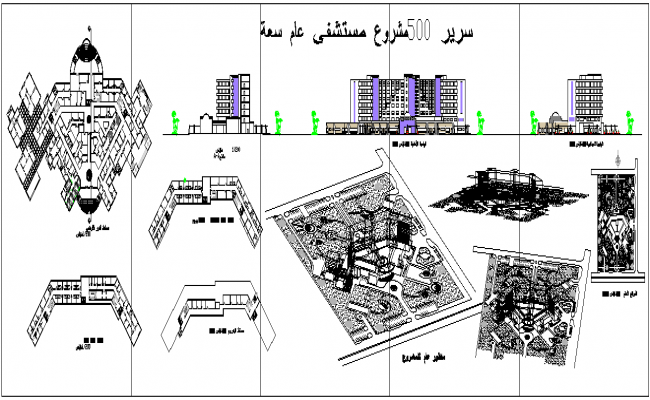

This <a href="https://cadbull.com/Hospital" rel="noopener noreferrer" target="_blank">hospital</a> project AutoCAD DWG file presents a detailed architectural plan for a 500-bed general hospital. The drawing includes comprehensive floor plans, sections, and elevations designed with precision to meet healthcare infrastructure standards. The layout features patient wards, corridors, operating areas, administration blocks, and service zones, along with external landscaping and site planning elements. Each section of the file is meticulously labeled, providing a clear understanding of the hospital’s spatial organization and functional design.Additionally, the DWG file showcases 3D rendered perspectives, giving a realistic view of the hospital’s <a href="https://cadbull.com/Structure-detail" rel="noopener noreferrer" target="_blank">structural </a>massing and layout distribution. This plan is highly valuable for architects, civil engineers, and healthcare facility planners aiming to design efficient, large-scale medical facilities. It helps in visualizing circulation flow, emergency access, and departmental connectivity across the building. The AutoCAD DWG file stands as a resourceful tool for those looking to explore hospital <a href="https://cadbull.com/Cad-Architecture" rel="noopener noreferrer" target="_blank">architectural </a>design in technical depth and scale.

500 Bed Hospital AutoCAD DWG Plan with Sections and 3D Layout Design

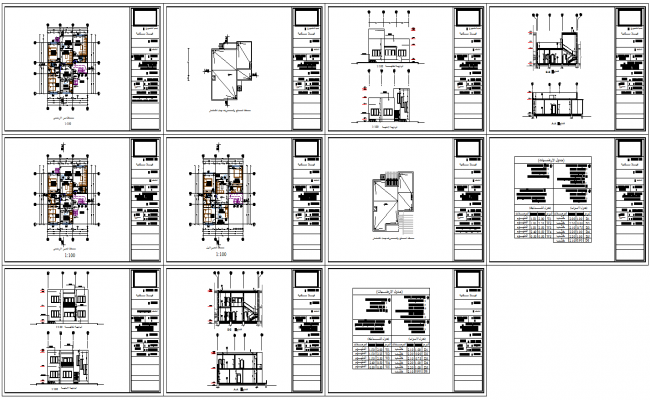

This House Design CAD drawing presents a complete set of <a href="https://cadbull.com/Cad-Architecture" rel="noopener noreferrer" target="_blank">architectural </a>working drawings created in AutoCAD DWG format. The file includes detailed floor plans, building sections, and elevations with precise measurements and layout references. Each drawing is prepared to a 1:100 scale, ensuring accurate representation of structural components, wall dimensions, window placements, and column gridlines. These detailed plans make the file valuable for architects, civil engineers, and contractors involved in residential design and <a href="https://cadbull.com/Construction-Cad-Drawing" rel="noopener noreferrer" target="_blank">construction </a>projects.In addition to the plans, the DWG file provides comprehensive information on building height, floor distribution, and construction materials. It helps users understand every layer of a residential structure, from foundation detailing to roof alignment, making it a complete architectural reference package. Ideal for use in AutoCAD, Revit, or SketchUp, this drawing supports easy modification for custom <a href="https://cadbull.com/Projects" rel="noopener noreferrer" target="_blank">projects</a>. Download this professional DWG layout to enhance your architectural documentation and design workflow through Cadbull.com.

Complete House Design AutoCAD DWG with Plans Sections and Elevations
