Remote Mount flanged style.

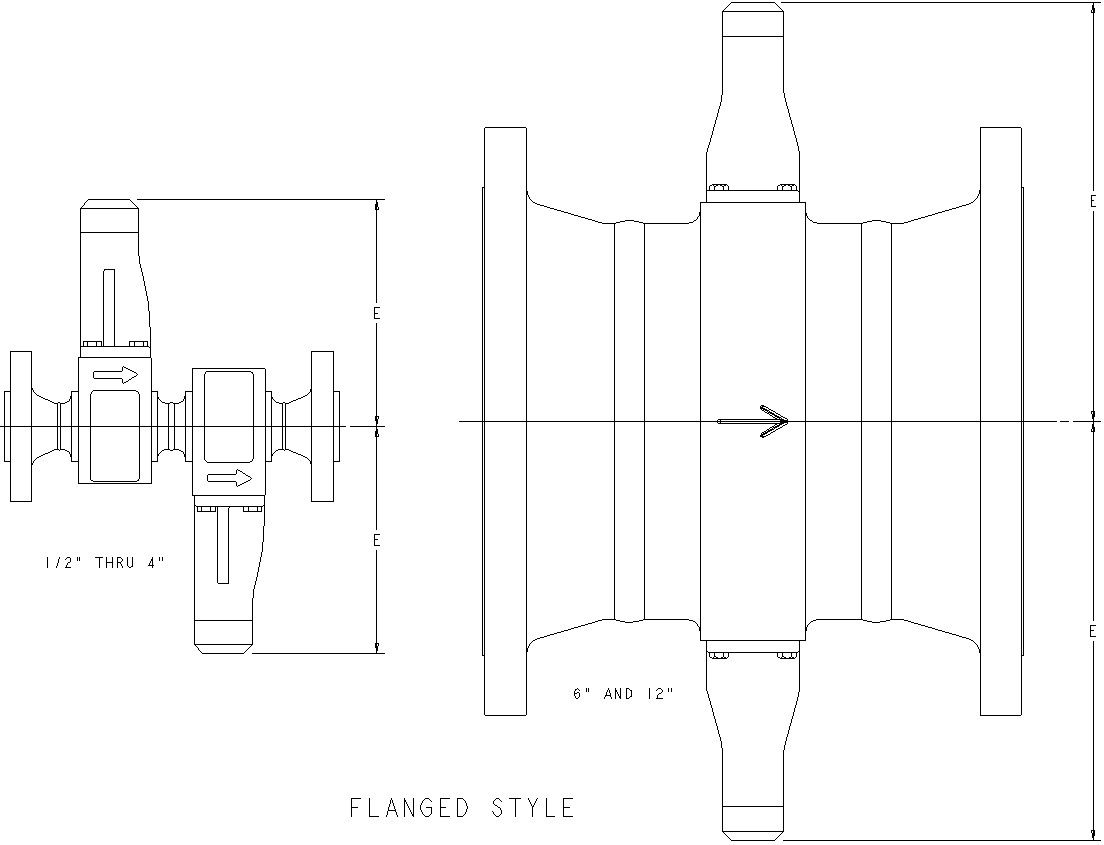

This Architectural Drawing is of Remote Mount flanged style. A flange is a category of gasket made to fix two sections of pipe together, or act as a removable plug at the end of a single pipe. All flanges are round disks with holes for bolts around the rim, but the commonalities end there. Flanges are used to connect pipes with each other, to valves, to fittings, and to specialty items such as strainers and pressure vessels. A cover plate can be connected to create a "blind flange". Flanges are joined by bolting, and sealing is often completed with the use of gaskets or other methods. For more information download the drawing file.

File Type: DWG File ID: 253905
