Description

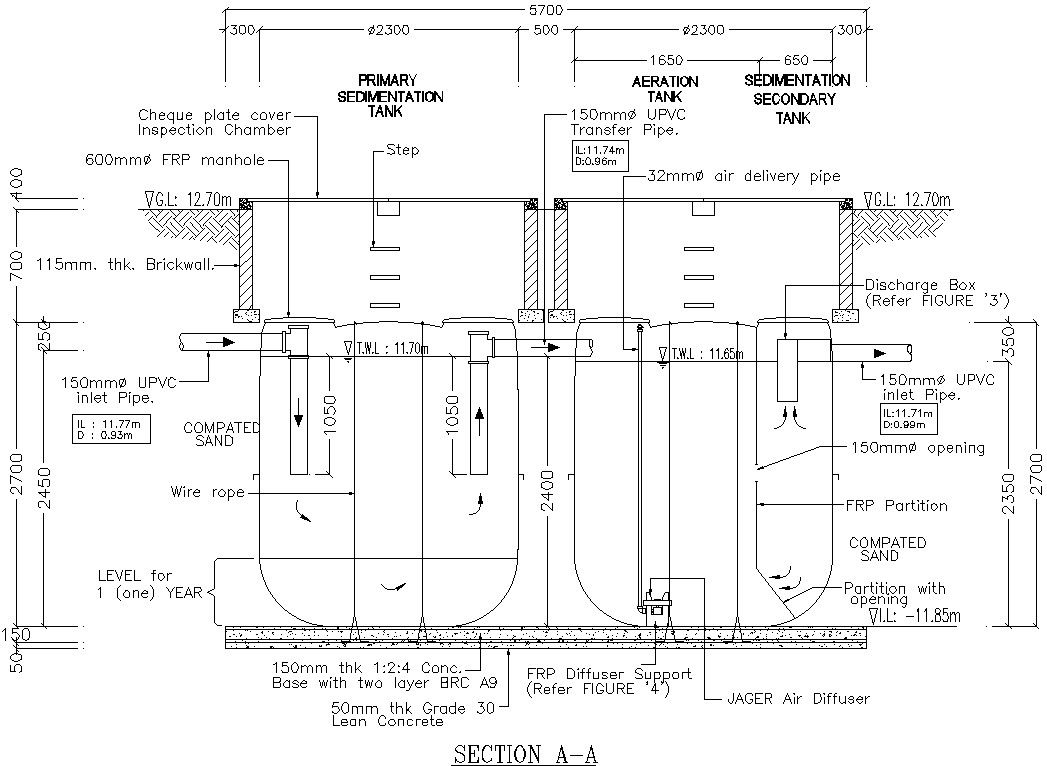

Radial flow sedimentation tank including 150mm thk concrete base with two layers, FRP diffuser support , Jager air diffuser , 50mm thk grade 30 concrete lean , FRP partition , partition with opening , 150mm opening , wire rope , 150mm inlet pipe , 115 thk brick wall , 60mm FRP manhole, 32 mm delivery pipe , cheque plate cover inspection chamber, discharge box for more details of Radial flow sedimentation tank download this AutoCAD file or dwg format
Uploaded by:
zalak prajapati
