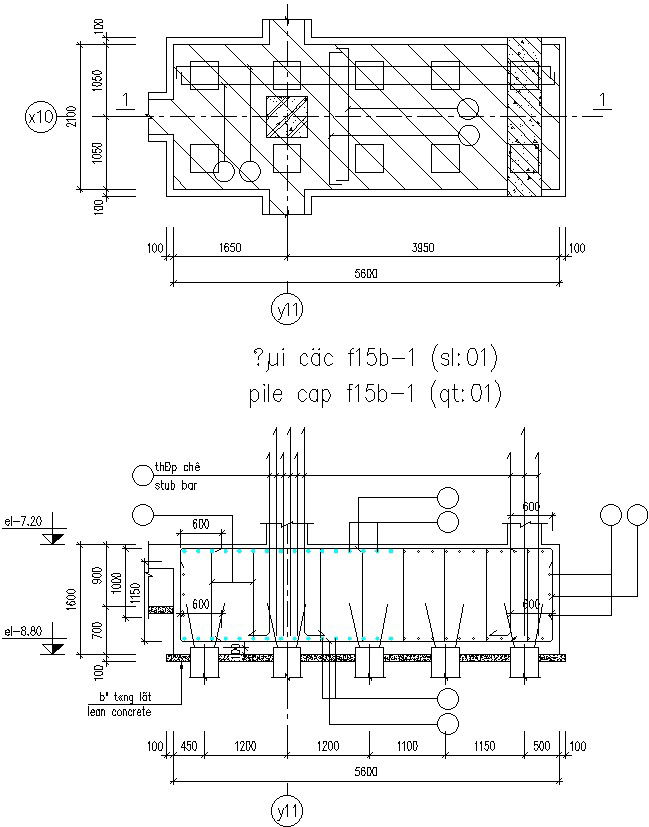

Pile column of foundation.


This Architectural Drawiing is AutoCAD 2d drawing of Pile column of foundation. Pile: a long slender column usually of timber, steel, or reinforced concrete driven into the ground to carry a vertical load. The union of the superstructure through socket, in the pile cap is accomplished by embedding a part of column (embedded length) in an opening of the foundation element that enables its holder. Usually the socket is built on the block, but is also used pile caps with embedded or partially embedded socket. For more details and information download the drawing file.

File Type: DWG File ID: 254316
