Cross section of structural member with detail AutoCAD drawing, dwg file, CAD file


Description

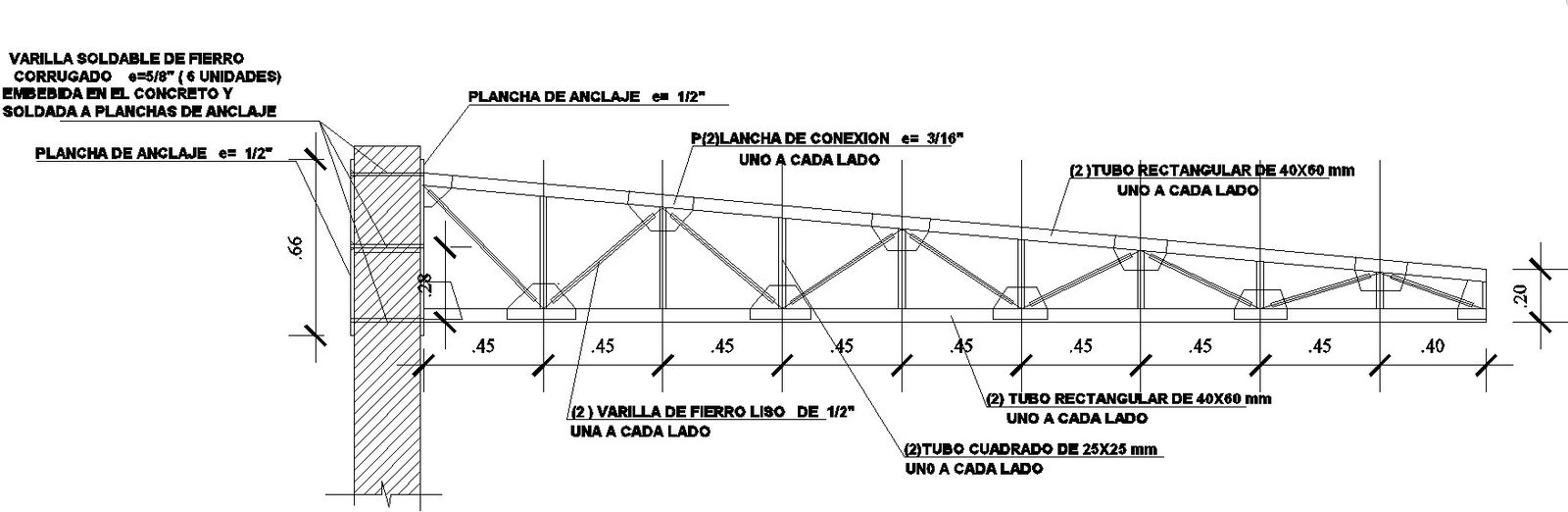

This architectural drawing is Cross section of structural member with detail AutoCAD drawing, dwg file, CAD file. In this drawing there were 1/2" smooth iron rod on each side, 25x25mm square tube on each side, 1/2" anchor plate, 3/16" blot connection one on each side, etc. are given with details. For more details and information download the drawing file.




File Type: DWG File ID: 256466
