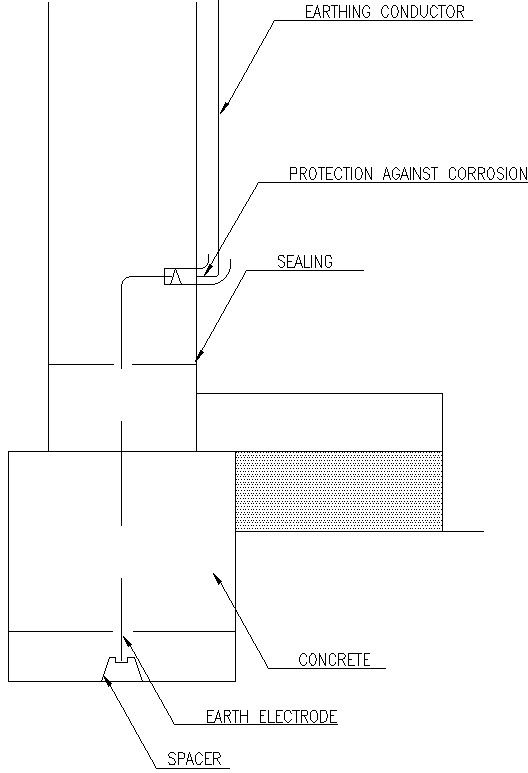

This Architectural Drawing is AutoCAD 2d drawing of Earth electrode details in AutoCAD, dwg file. An Earth Electrode is a conducting element buried directly in the ground, facilitating the flow of fault currents towards the ground. This means that Earth Electrodes are metallic and, since they have to be buried for long periods of time, they need to be resistant to corrosion as well.
