Nut-bolt design in AutoCAD 2D drawing, dwg file, CAD file

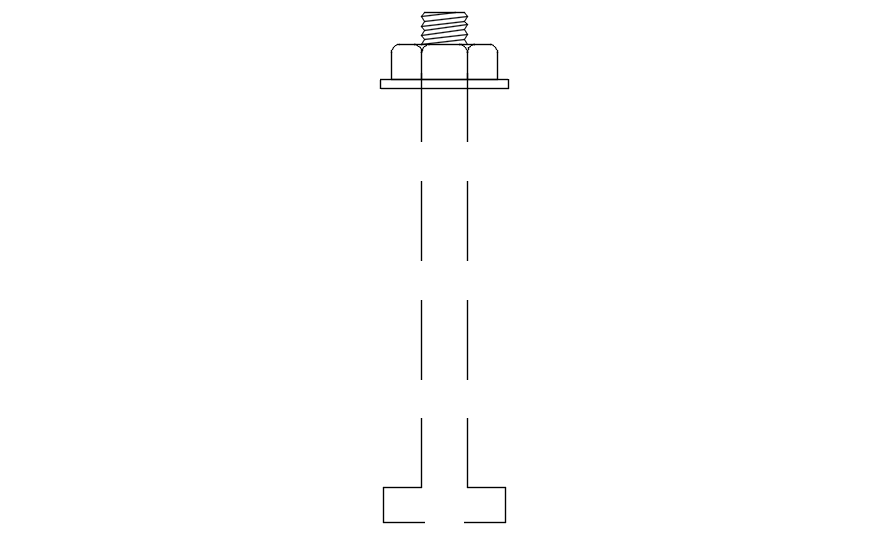

This architectural drawing is Nut-bolt design in AutoCAD 2D drawing, dwg file, CAD file. To connect many pieces together, nuts are nearly typically used in tandem with a matching bolt. The two partners are held together by the friction between their threads, a minor bending of the bolt, and compression of the holding components. For more details and information download the drawing file.
