Wooden Inverted Roof Cover Section with Insulation Layer Detail

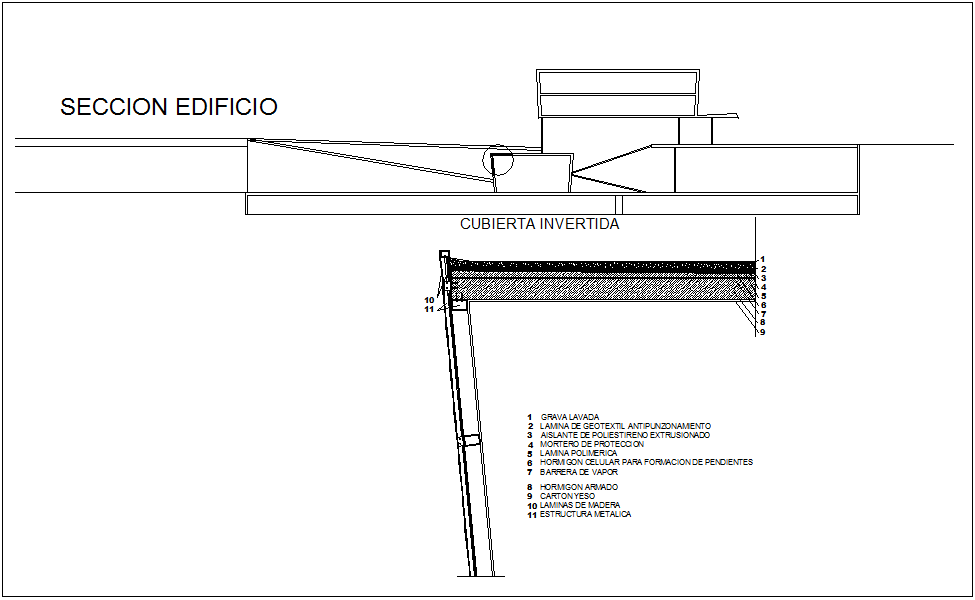

This wooden inverted roof cover section with insulation layer detail drawing presents a comprehensive AutoCAD DWG file showing the structural and material composition of an inverted roof system. The drawing includes a sectional view of the building, highlighting the inverted roof configuration with multiple construction layers. It clearly illustrates components such as gravel layer, geotextile membrane, extruded polystyrene insulation, waterproofing membrane, slope-forming concrete, vapor barrier, and reinforced structural base.
