Metal Mesh Fence Design with Concrete Post and Wall Detail Layout

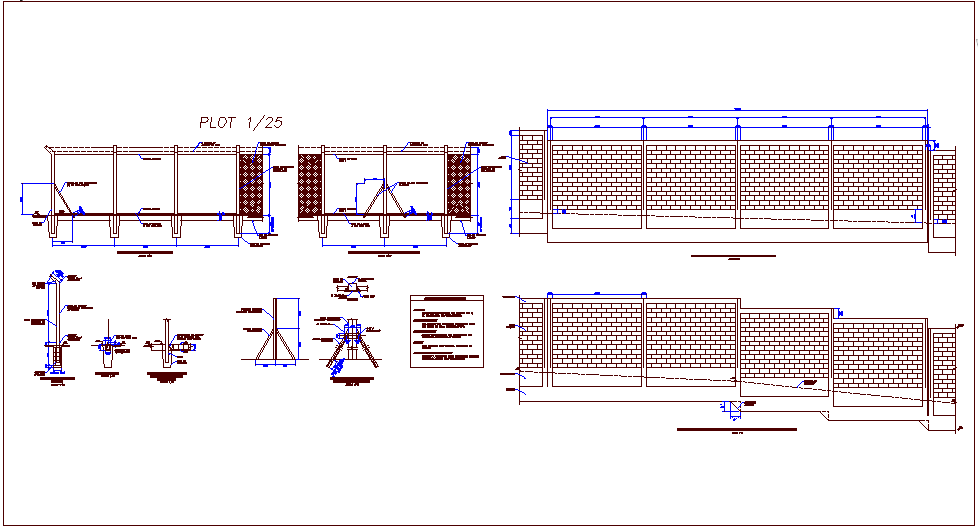

Explore an AutoCAD DWG file of a metal mesh fence design featuring detailed construction with concrete post and wall integration. This drawing includes a mesh panel layout with accurate spacing, height, and width dimensions for proper installation. The design highlights concrete post positioning, foundation support, and fixing methods between mesh and structural elements. Dimension details ensure clarity in alignment, spacing, and connection, making it useful for architects and engineers working on boundary walls and fencing projects.

This DWG file also presents detailed wall construction with sectional clarity, showing how the mesh fence connects with concrete posts and base structure. The layout includes fixing points, support alignment, and structural coordination with accurate measurement references. It supports the efficient planning and execution of fencing systems for residential and commercial applications. Ideal for drafting and detailing, this file provides a complete reference for metal mesh fence construction using AutoCAD.
