Lighting and Electrical Layout detail Design autocad dwg drawing

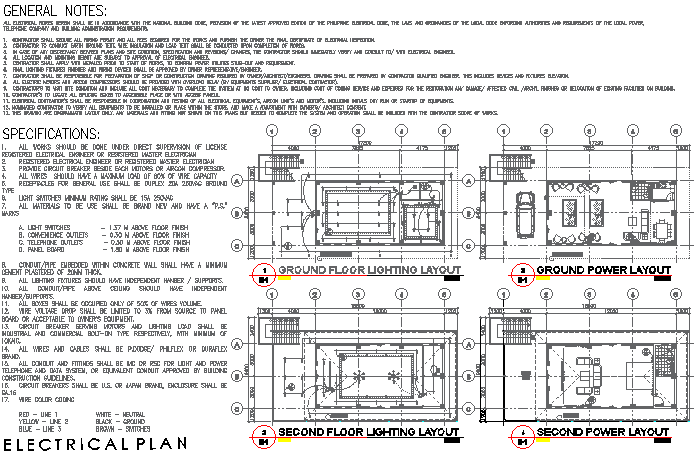

Our AutoCAD DWG drawing of a lighting layout provides a comprehensive overview of the electrical and power distribution within a building or project. This detailed plan encompasses both the electrical and power layouts, ensuring efficient placement of lighting fixtures and power outlets throughout the floor plan, including the ground floor. With clear depictions of fixture locations and power distribution points, along with accompanying schedules, our CAD files facilitate precise planning and installation processes. Whether you're an electrician, designer, or builder, having access to this CAD drawing ensures a well-coordinated and functional lighting system for your project.
