oof and wall junction detail with single ply membrane roofing dwg autocad detail drawing

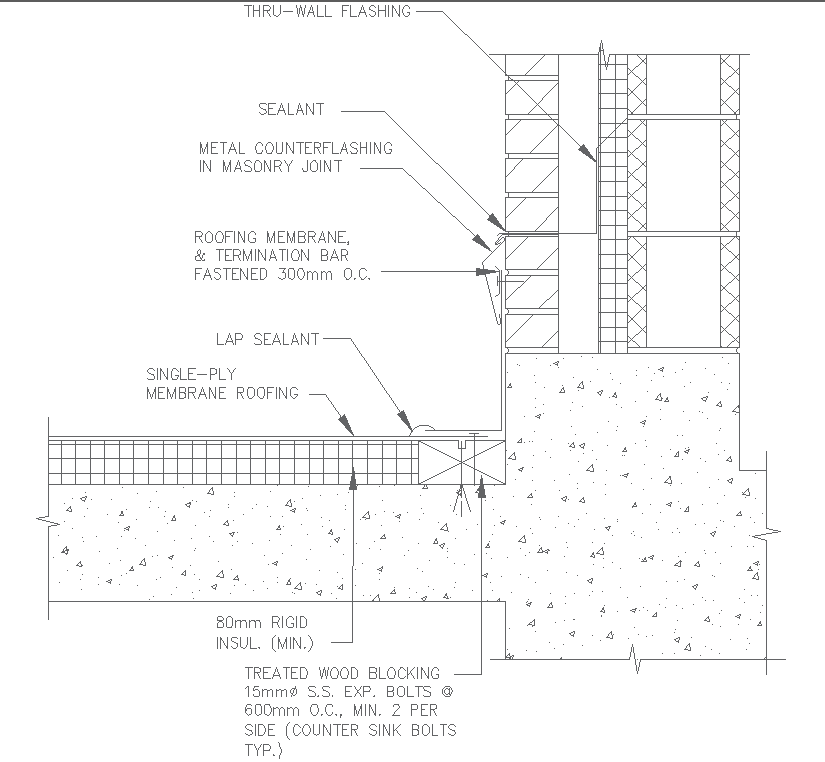

Explore a detailed AutoCAD DWG drawing depicting the junction detail between the roof and wall, specifically designed for single-ply membrane roofing systems. This comprehensive drawing provides insights into the installation process, including elements such as thru-wall flashing, sealants, metal counterflashing, and termination bars fastened within masonry joints. Additionally, it may feature specifications for lap sealants and rigid insulators, ensuring proper sealing and insulation for the roofing system. Architects, engineers, and contractors can utilize this drawing to ensure accurate installation and sealing of roof and wall junctions. Accessible as a 2D AutoCAD drawing in DWG format, this file serves as a valuable resource for professionals involved in construction projects, facilitating seamless coordination and implementation of critical details for optimal performance and longevity of single-ply membrane roofing systems.
