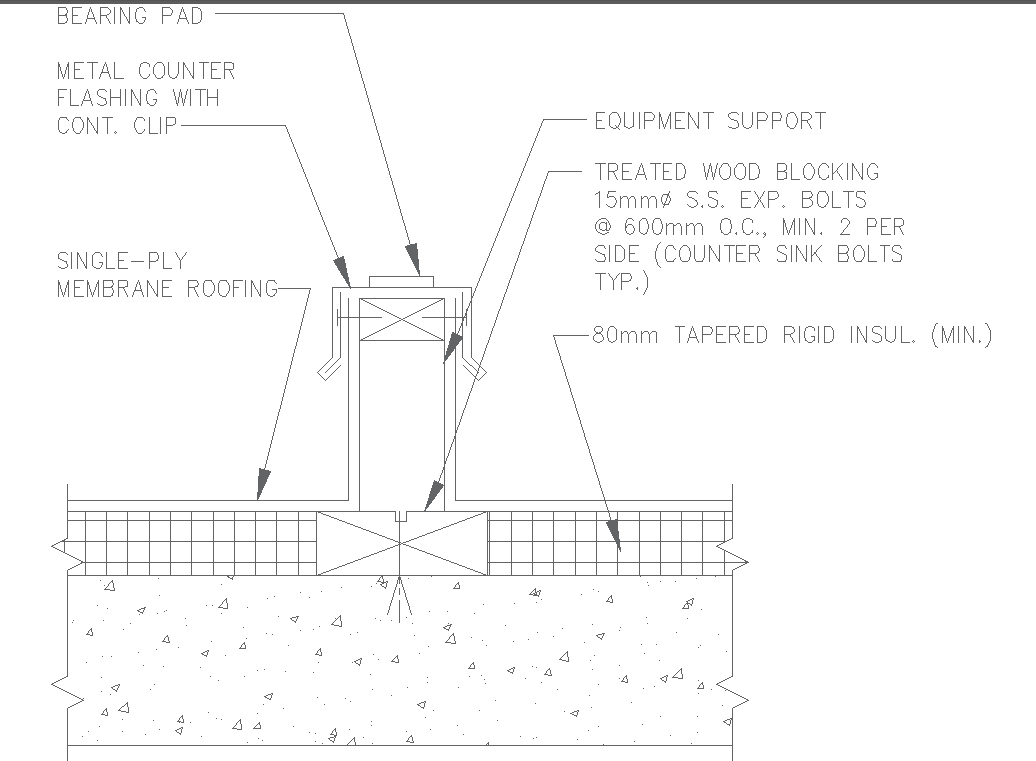

Dam detail with all equipment support and treated wood blocking dwg autocad drawing

Explore a detailed AutoCAD DWG drawing showcasing the dam detail complete with all equipment support and treated wood blocking, ideal for construction projects. This comprehensive drawing provides insights into the installation of equipment supports, including specifications for treated wood blocking and counter-sink bolts for secure attachment. Additionally, it features trapped rigid insulators and bearing pads for structural support, ensuring stability and durability. The drawing may also include details of metal counter flashing with continuous clips, essential for waterproofing, along with specifications for single-ply membrane roofing systems. Architects, engineers, and contractors can utilize this drawing to ensure precise installation and support of equipment, facilitating seamless coordination and implementation of critical details for optimal performance and longevity. Accessible as a 2D AutoCAD drawing in DWG format, this file serves as a valuable resource for professionals involved in construction projects, facilitating seamless coordination and implementation of critical details for optimal performance and longevity.
