Site Plan For Ground Plus Four Floor Building With Furniture Layout

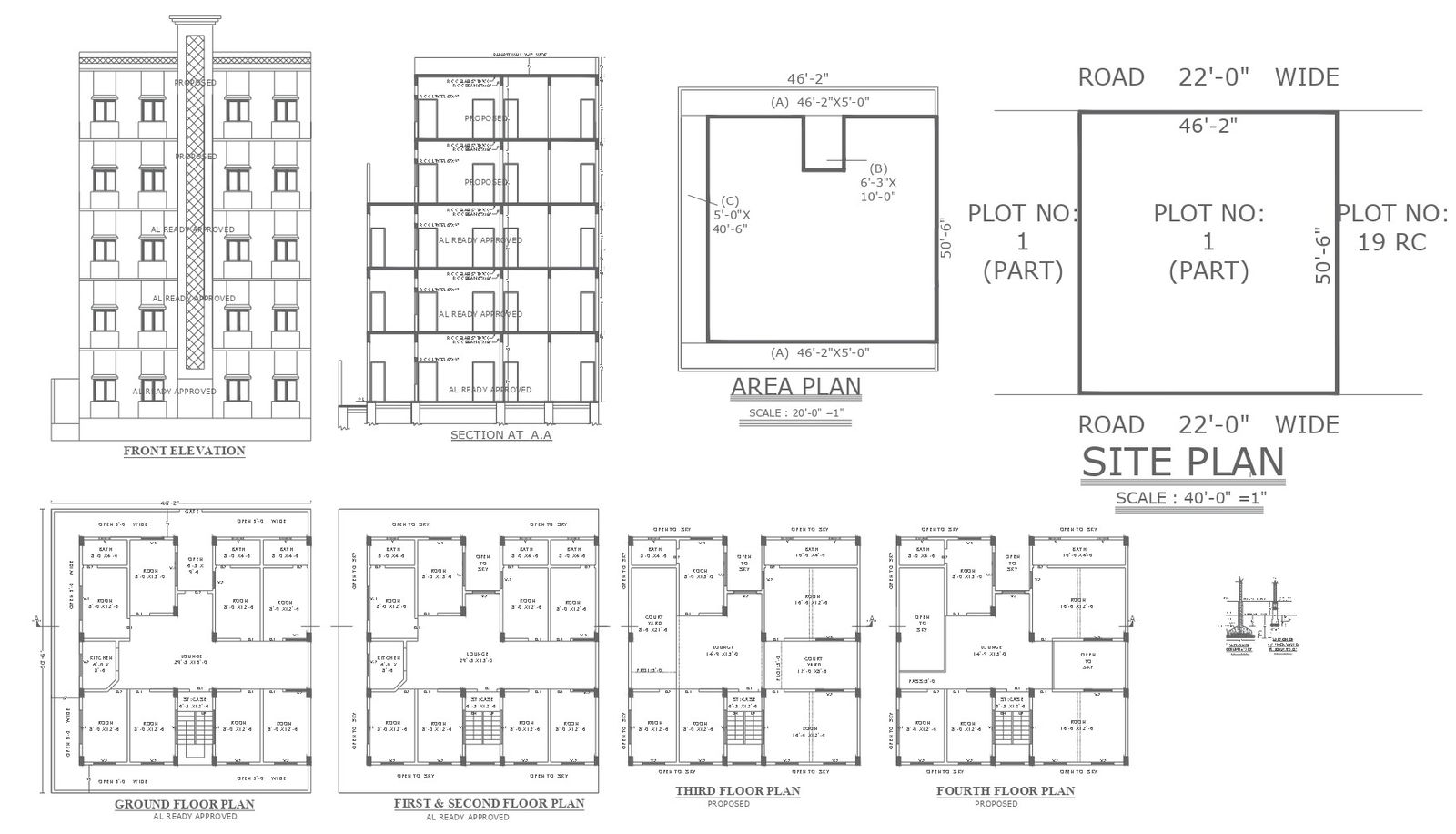

This AutoCAD DWG drawing presents a detailed site plan for a ground plus four-floor residential building, including complete furniture layouts for all floors. The drawing clearly illustrates plot dimensions of approximately 46 ft x 50 ft, road access of 22 ft width, and accurate site orientation. The ground floor plan shows well-arranged rooms, lounges, kitchens, bathrooms, staircases, and open-to-sky areas designed for smooth circulation and efficient space utilization. Furniture placement is clearly indicated to help evaluate room proportions, usability, and functional zoning.

The first, second, third, and fourth floor plans follow a consistent structural grid, ensuring vertical alignment and ease of construction. Each floor layout includes bedrooms, lounges, bathrooms, ventilation openings, and open spaces, with clear dimensions and passage widths. The drawing also features a front elevation highlighting a balanced multi-storey façade, along with Section A–A showing RCC slab thickness, beam sizes, floor heights, and parapet details. An area plan and site plan further support planning and approval documentation. This DWG file is ideal for architects, civil engineers, builders, and developers seeking a reliable CAD reference for multi-storey residential projects using AutoCAD-compatible software.
