Cloacal Cavity Installation Plan with Floor and Elevation Details

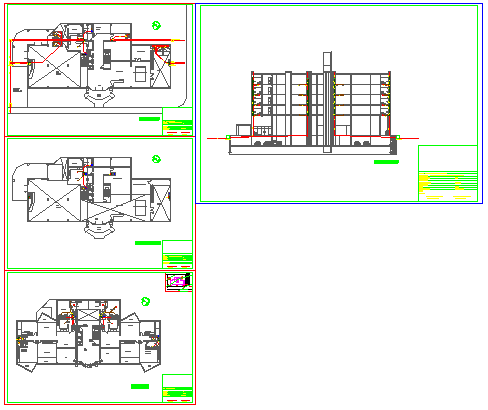

This AutoCAD drawing presents a detailed cloacal (cavity) installation design for a 20x15m building, including all floor plans, elevation views, and sectional details. The file features precise cavity placement for walls, plumbing layouts, and structural alignment across each floor, ensuring accurate planning for architects, civil engineers, and builders. Door and window positions are included with measurements for proper integration with cavity systems. The elevation views display cavity alignment and height dimensions, providing a complete visual guide for construction and design verification. Compatible with AutoCAD, 3D Max, Revit, and SketchUp, this DWG file helps professionals plan and execute building installations efficiently.
