Bungalow Floor Plan AutoCAD with Green Area Layout and Room Sizes

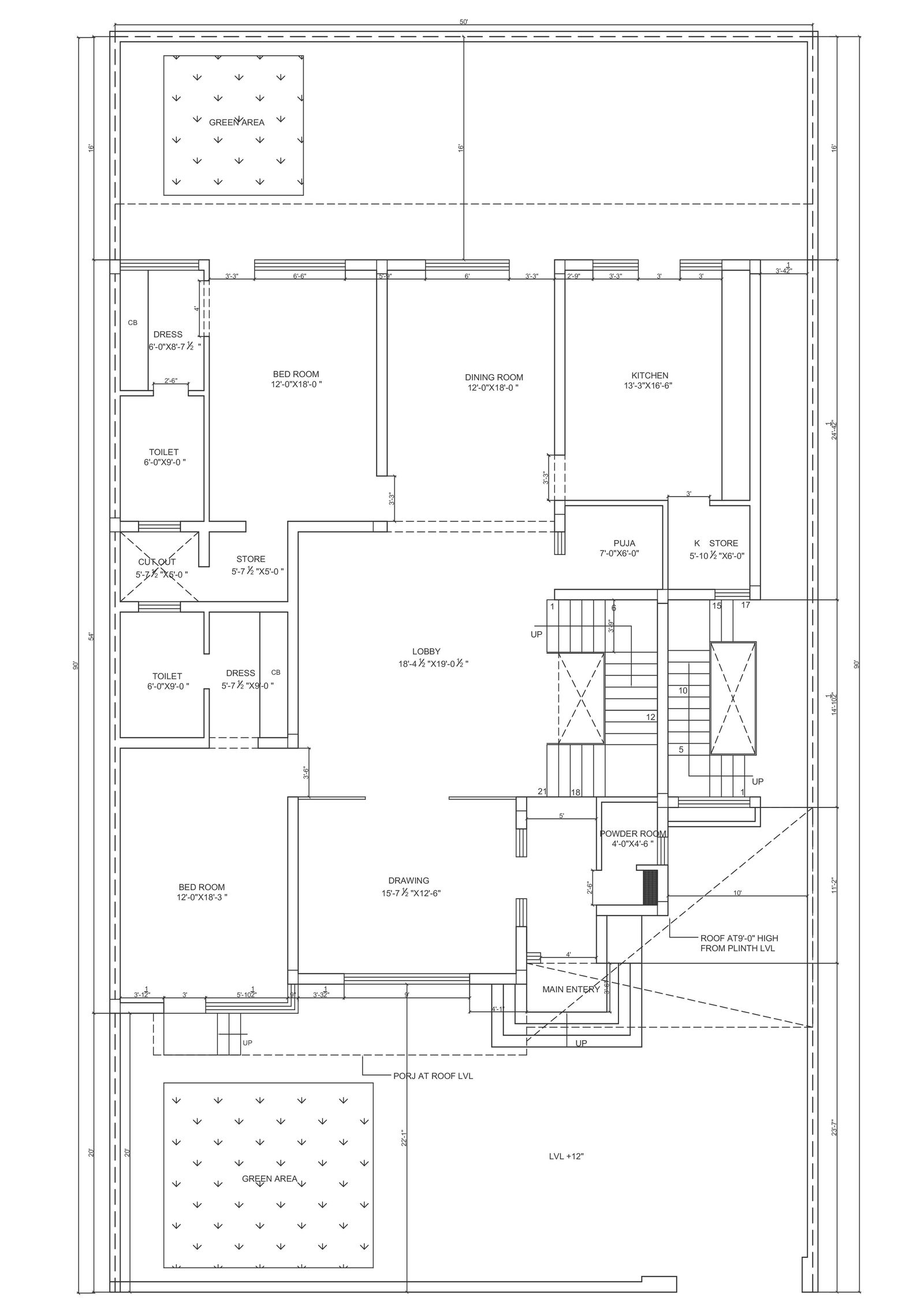

This bungalow floor plan AutoCAD drawing presents a well-balanced residential layout that integrates indoor living spaces with dedicated green areas. The plan clearly shows two landscaped green zones positioned for natural light and ventilation, enhancing the overall spatial quality of the bungalow. Internal spaces are carefully dimensioned, including bedrooms sized 12x18 feet and 12x18 feet 3 inches, a drawing room measuring 15 feet 7 inches by 12 feet 6 inches, and a dining room of 12x18 feet. The kitchen is planned at 13 feet 3 inches by 16 feet 6 inches with an adjacent store, puja room, and service circulation for functional efficiency.

The AutoCAD DWG file also highlights supporting spaces such as a central lobby measuring 18 feet 4.5 inches by 19 feet 0.5 inches, attached dressing rooms, toilets of 6x9 feet, and a powder room near the main entry. Staircase positioning, main entrance, verandah roof level, and plinth level height references are clearly marked for construction clarity. Wall thicknesses, door placements, and circulation paths are accurately drawn to support execution and interior planning. This bungalow layout is suitable for architects, civil engineers, and designers seeking a residential AutoCAD drawing with green area planning, precise room dimensions, and a practical floor layout.
