MDF Wall Cladding Detail 150mm Strips Paint Finish Section Drawing

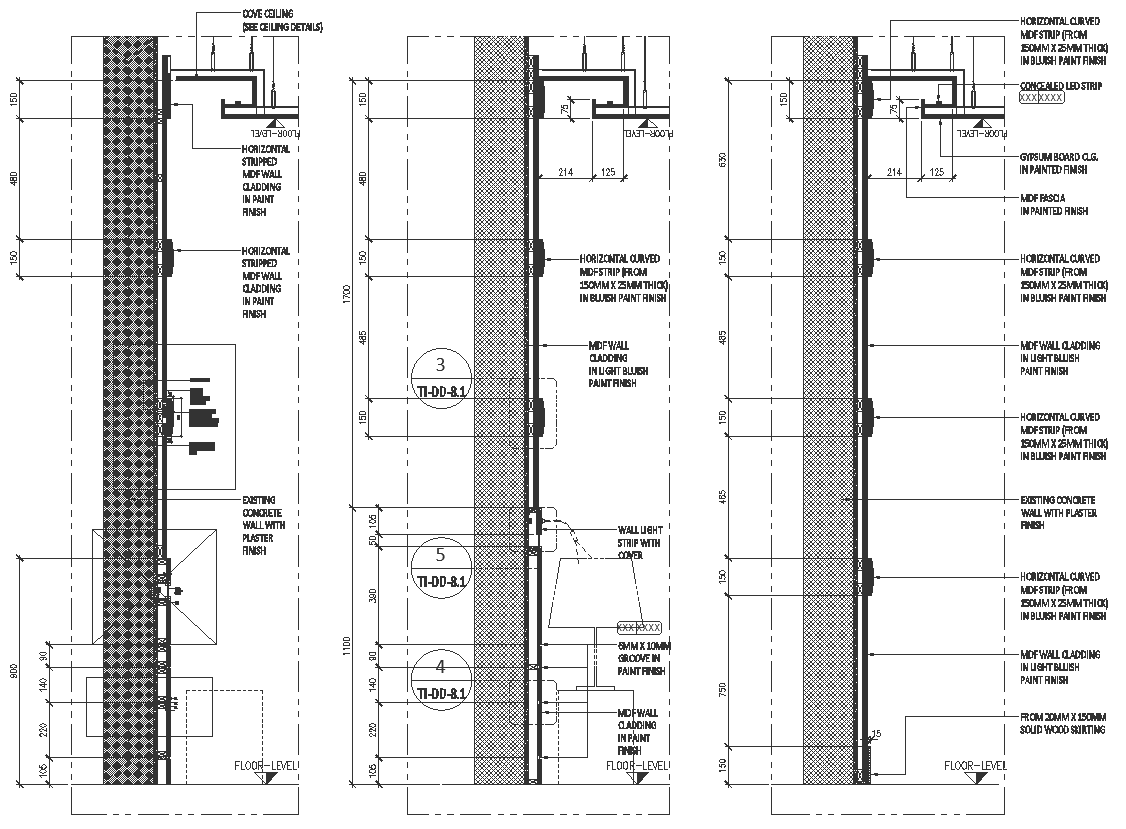

This MDF wall cladding detail drawing presents sectional details of painted MDF wall cladding with precise vertical measurements and layered construction. The drawing illustrates horizontal curved MDF strips formed from 150mm by 25mm sections with a light brush paint finish, fixed over an existing concrete wall with plaster finish. Dimensions such as 150mm spacing modules, 450mm vertical intervals, 650mm upper section height, and 1100mm reference level are clearly marked. The MDF wall cladding detail also shows concealed LED strip placement, cove ceiling interface, and floor level alignment for accurate execution.
