AutoCAD Furniture Timber Veneer Cupboard Door Detail With 700mm Width

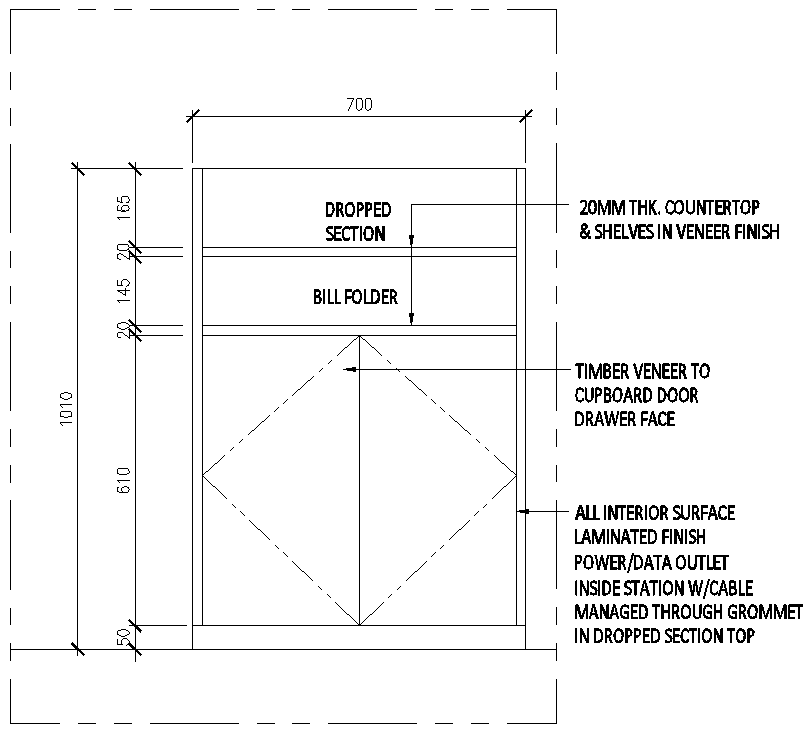

This AutoCAD furniture detail drawing shows a timber veneer cupboard door and drawer face design prepared with accurate dimensional control for interior furniture execution. The drawing clearly indicates an overall width of 700 mm and a total height of 1010 mm, with internal vertical divisions including a 610 mm cupboard storage zone, a 145 mm bill folder shelf, and a dropped section at the top. A 20 mm thick countertop and internal shelves finished in veneer are detailed for precise material understanding. The cupboard door and drawer face are specified with timber veneer finish, supporting clean furniture elevation planning.

The DWG file further highlights laminated interior surfaces, proper panel alignment, and functional detailing such as a power and data outlet inside the station. Cable routing is clearly managed through a grommet provided in the dropped section top, ensuring neat service integration within furniture units. This drawing is suitable for architects, interior designers, furniture consultants, and builders working on office storage units, reception counters, or custom cupboards. Available through a subscription, this AutoCAD DWG file helps reduce drafting time while maintaining consistency, accuracy, and professional furniture detailing standards in design and execution drawings.
