Table Leg Room Detailed Design Drawing With Storage And Support

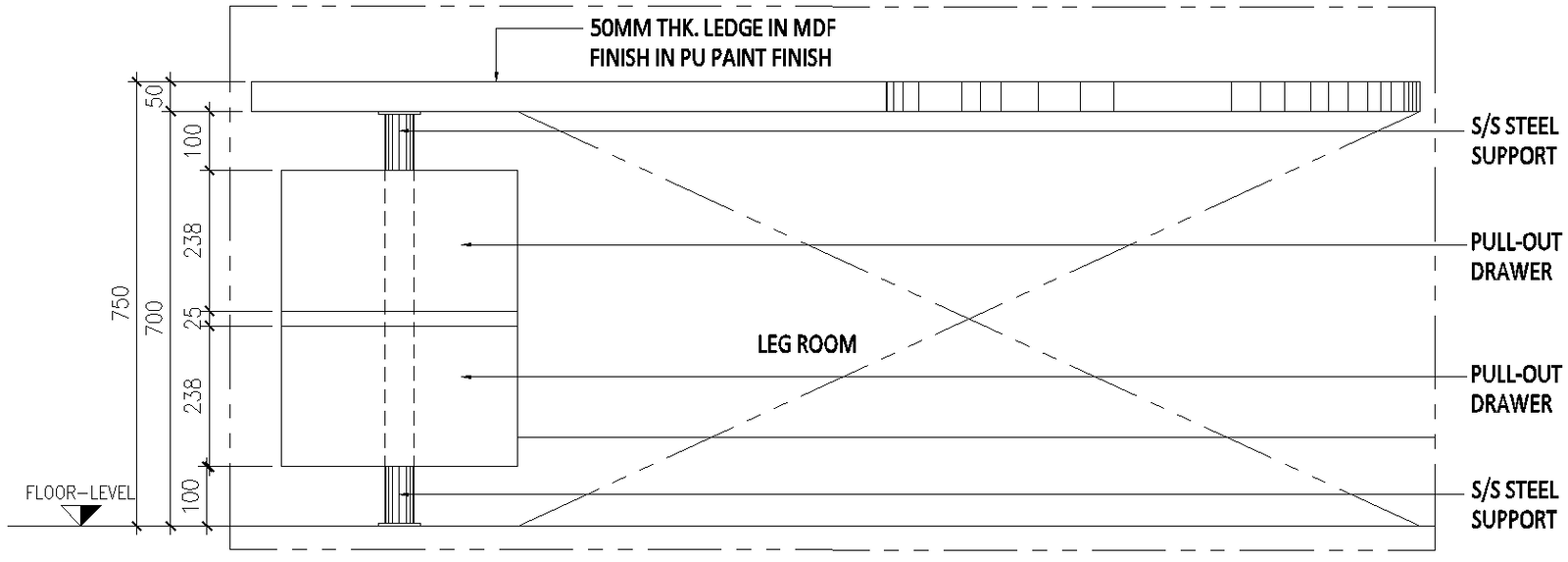

This AutoCAD drawing presents a detailed leg room design for a table with integrated storage and structural support. The drawing clearly illustrates ergonomic clearance below the tabletop, showing a total table height of approximately 750 mm from floor level and a usable leg room height of around 700 mm. Vertical and horizontal dimensions define drawer stacking heights of about 238 mm each, intermediate clearances of 25 mm, and a top panel thickness of 50 mm in MDF with PU paint finish. Stainless steel supports are shown at both sides to ensure structural stability and load distribution.

The DWG file also includes pull-out drawer details, MDF ledge construction, and steel support positioning relative to floor level. Clear annotations mark leg room zones, drawer alignment, and underside table clearances for comfortable seating and movement. Material callouts such as MDF thickness, PU finish, and steel supports help ensure accurate fabrication and site execution. This drawing is suitable for architects, interior designers, and furniture manufacturers working on study tables, office desks, and workspace furniture layouts. Subscription access allows professionals to directly use this ready-to-use AutoCAD drawing to save drafting time, maintain dimensional accuracy, and deliver ergonomically efficient furniture designs.
