Architectural Room Elevation And Floor Plan Layout Drawing With Detail

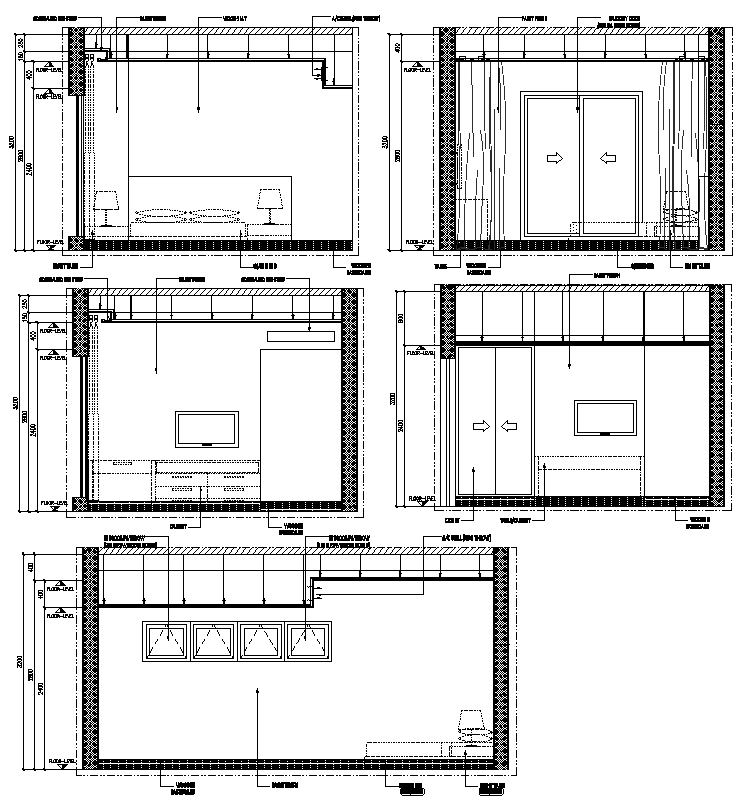

This AutoCAD drawing presents a complete architectural room elevation and floor plan layout with execution level detailing and accurate dimensions. The drawing includes multiple interior wall elevations showing bed placement, wardrobe units, TV panel positioning, sliding door arrangements, window openings, and decorative wall elements. Vertical measurements indicate room heights of approximately 3000 mm to 3200 mm, with clearly marked floor levels, ceiling lines, slab thickness, and false ceiling drop details. Wall thicknesses, furniture clearances, door widths, and window sill heights are precisely annotated to support detailed interior planning and construction coordination.

The floor plan layout complements the elevations by defining internal room widths, circulation zones, furniture layout alignment, and storage placement. Ceiling panel layouts, lighting drop points, cabinet depths, and partition offsets are clearly shown for accurate interior execution. This DWG file is suitable for architects, interior designers, and civil professionals working on residential and commercial interior projects. Subscription access allows users to directly integrate this ready-made AutoCAD drawing into their workflow, reducing drafting time while ensuring dimensional accuracy and consistent documentation as per professional drawing standards.
