25x40 House Plan DWG CAD File with 5 Bedrooms and 3 TV Lounges

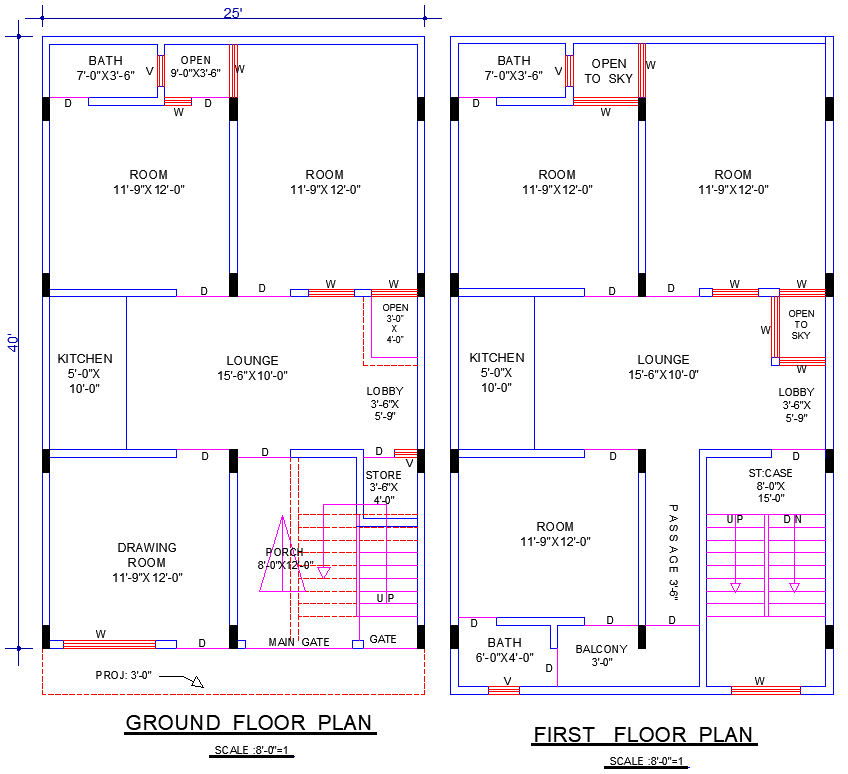

This AutoCAD DWG drawing shows a detailed 25x40 feet G Plus One residential house plan with complete ground floor and first floor layouts. The ground floor plan includes a drawing room measuring 11’-9”x12’-0”, a lounge area of 15’-6”x10’-0”, a kitchen sized 5’-0”x10’-0”, a store room, a lobby, and a staircase block near the entrance. Two rooms of 11’-9”x12’-0” are provided with a common bathroom of 7’-0”x3’-6”. Open sky spaces are clearly marked for ventilation and daylight. Porch area, main gate, internal doors, windows, wall thickness, and circulation paths are properly defined in the drawing.

The first floor plan follows the same structural layout with additional rooms of 11’-9”x12’-0”, a 6’-0”x4’-0” bathroom, a 3’-0” wide balcony, a passage area, and an 8’-0”x15’-0” staircase zone. Open sky areas are shown for airflow and lighting. All dimensions, room names, and architectural elements are accurately labeled. This residential floor plan DWG is suitable for architectural drafting, construction reference, and residential layout planning based on a 25x40 plot size.
