Electrical Cable Routing AutoCAD Plan Warehouse LV Duct Bank

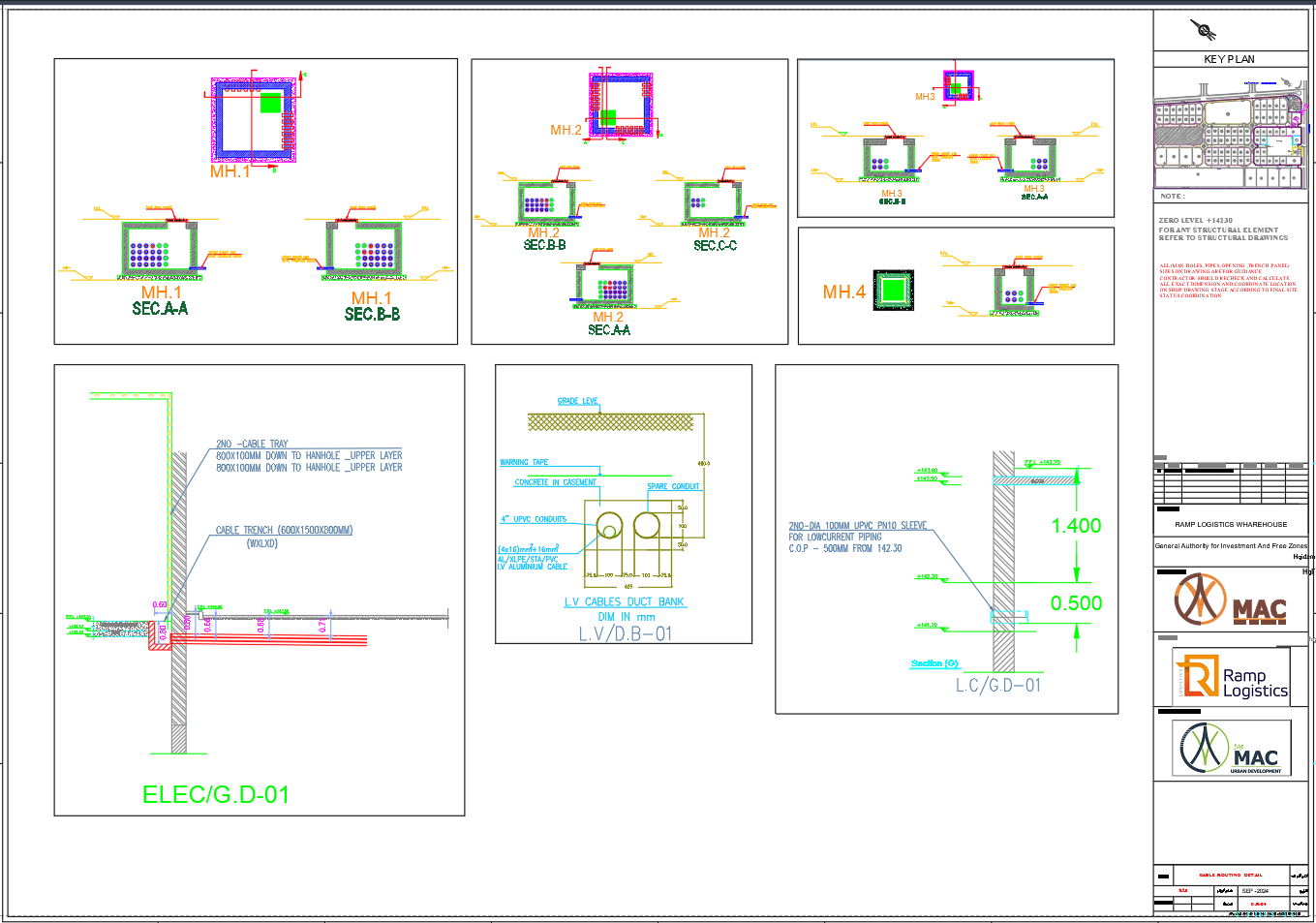

This AutoCAD DWG drawing provides a detailed electrical cable routing plan prepared specifically for a warehouse project. The layout clearly illustrates underground and surface-level electrical infrastructure, including LV duct banks, cable trenches, and manhole arrangements. Manhole details MH 1 to MH 4 are shown with plan views and sectional details, indicating concrete encasement, cover slabs, reinforcement placement, and cable entry points. Cable trench dimensions of 600x1500x800 mm are marked, along with cable trays and routing alignment to ensure safe and systematic electrical distribution across the site.

The drawing also includes LV duct bank details with UPVC conduits, showing conduit spacing, diameter, spare conduits, and depth from finished ground level. Sectional views specify measurements such as 1.40 m and 0.50 m depths for conduit placement and protection layers. Additional details cover rainwater harvesting coordination, compound wall interface, and electrical ground detail references. Clear annotations, level markings, and construction notes make this drawing suitable for execution and coordination. This AutoCAD electrical routing plan is ideal for architects, electrical engineers, civil engineers, and contractors involved in warehouse electrical infrastructure planning and installation.
