AutoCAD Duplex House Floor Plan with Balcony Kitchen and Bedrooms
Description

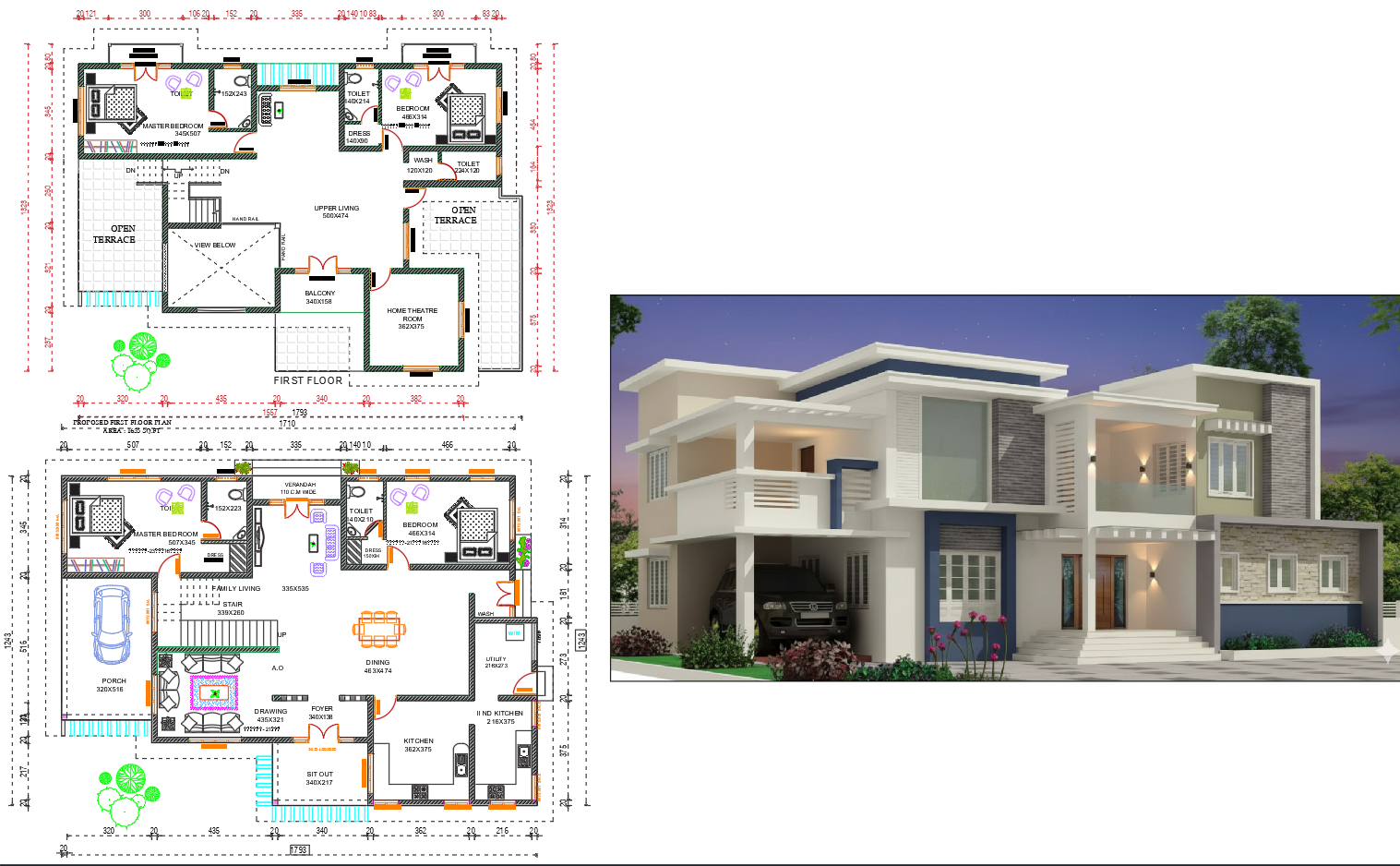

This AutoCAD duplex house floor plan presents a spacious residential layout with four bedrooms, attached toilets, balconies, kitchens, and living areas.
The ground floor includes a master bedroom (507×345 cm) with attached toilet (152×223 cm) and dress (100×150 cm), a bedroom (466×314 cm) with toilet (140×214 cm), a large drawing room (435×321 cm), dining area (463×474 cm), kitchen (362×375 cm), second kitchen/utility (216×375 cm), porch (320×516 cm), and foyer (340×138 cm).
The first floor includes two bedrooms (466×314 cm), a home theatre (362×375 cm), family living (500×474 cm), wash area, balconies (80 cm wide), and an open terrace.
Windows (W2 100×180, W3 180×100, SW2 120×100) and doors (D1 90×220, D2 75×220, MD 120×220) provide excellent ventilation and lighting.
Ideal for AutoCAD residential house plans, duplex villa layouts, and luxury home designs, optimized for both family comfort and aesthetic architecture.
