Wooden Cabinet Interior Detail Drawing With LED And Drawer Sizes

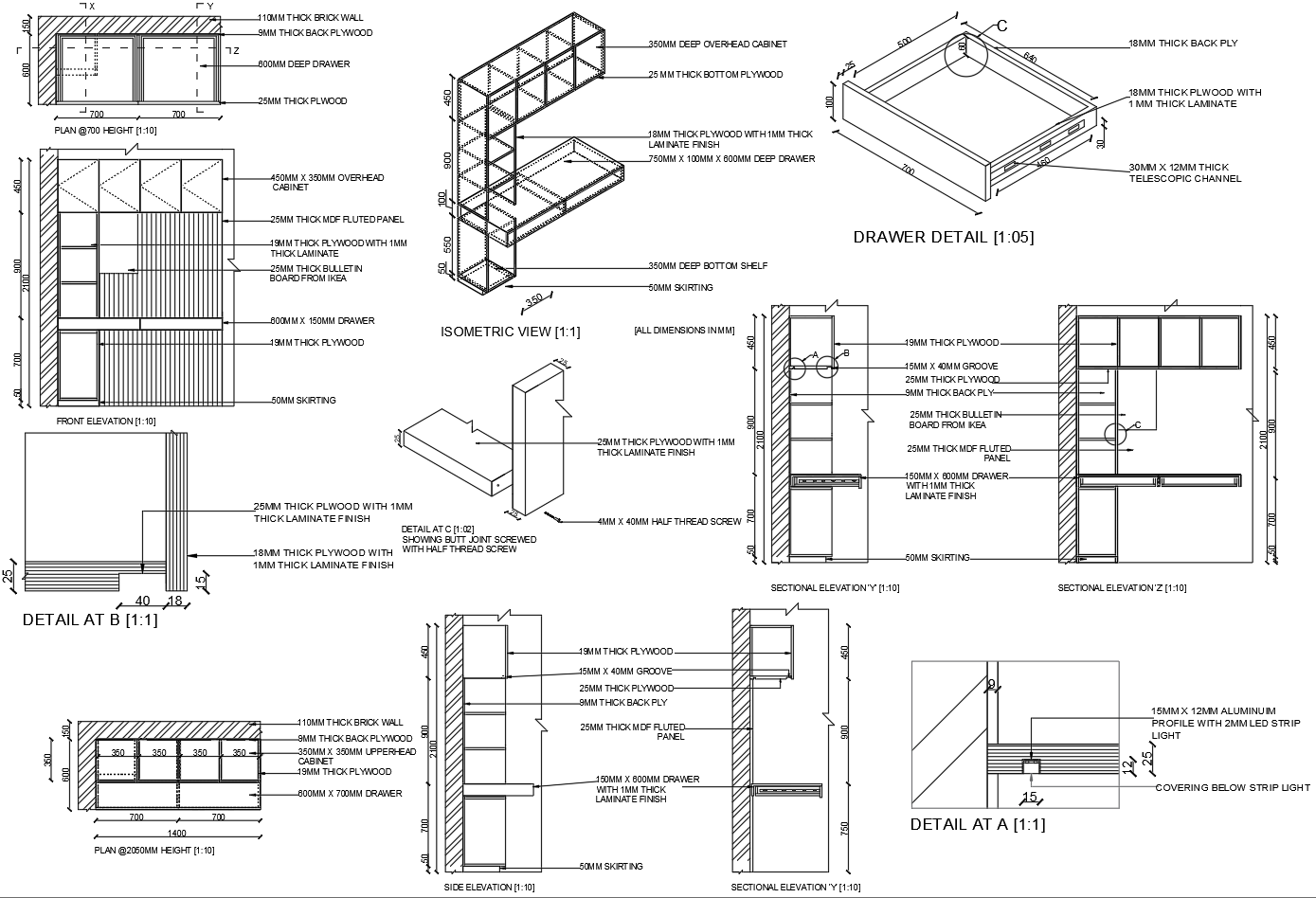

This AutoCAD DWG interior detail drawing presents a fully detailed wooden cabinet design with precise dimensions, materials, and assembly references for interior execution. The layout includes 350 mm deep overhead cabinets and drawers sized 600 mm and 700 mm wide with smooth telescopic channels of 30 mm by 12 mm thickness. Cabinet construction is defined using 18 mm thick plywood with 9 mm back ply and a 25 mm thick bottom plywood for structural strength. Decorative surfaces include 25 mm-thick MDF fluted panels finished with 1 mm laminate. Drawer boxes are shown with accurate depths and clearances, ensuring functional storage planning and fabrication accuracy.

The drawing also highlights integrated lighting and fixing details such as a 15 mm by 12 mm aluminium profile fitted with a 2 mm LED strip light concealed below the shelf. Joinery specifications include butt joint connections secured using 4 mm by 40 mm half-thread screws, along with a 50 mm skirting detail at the base. Multiple views are provided, including plan views at 700 mm and 2050 mm heights, front elevation, isometric view, and sectional elevations Y and Z at 1:10 scale. This DWG file is suitable for interior designers, architects, and furniture contractors requiring precise cabinet detailing for manufacturing and site installation.?
