Two Storey Residential Building Full Set With MEP and Structural DWG

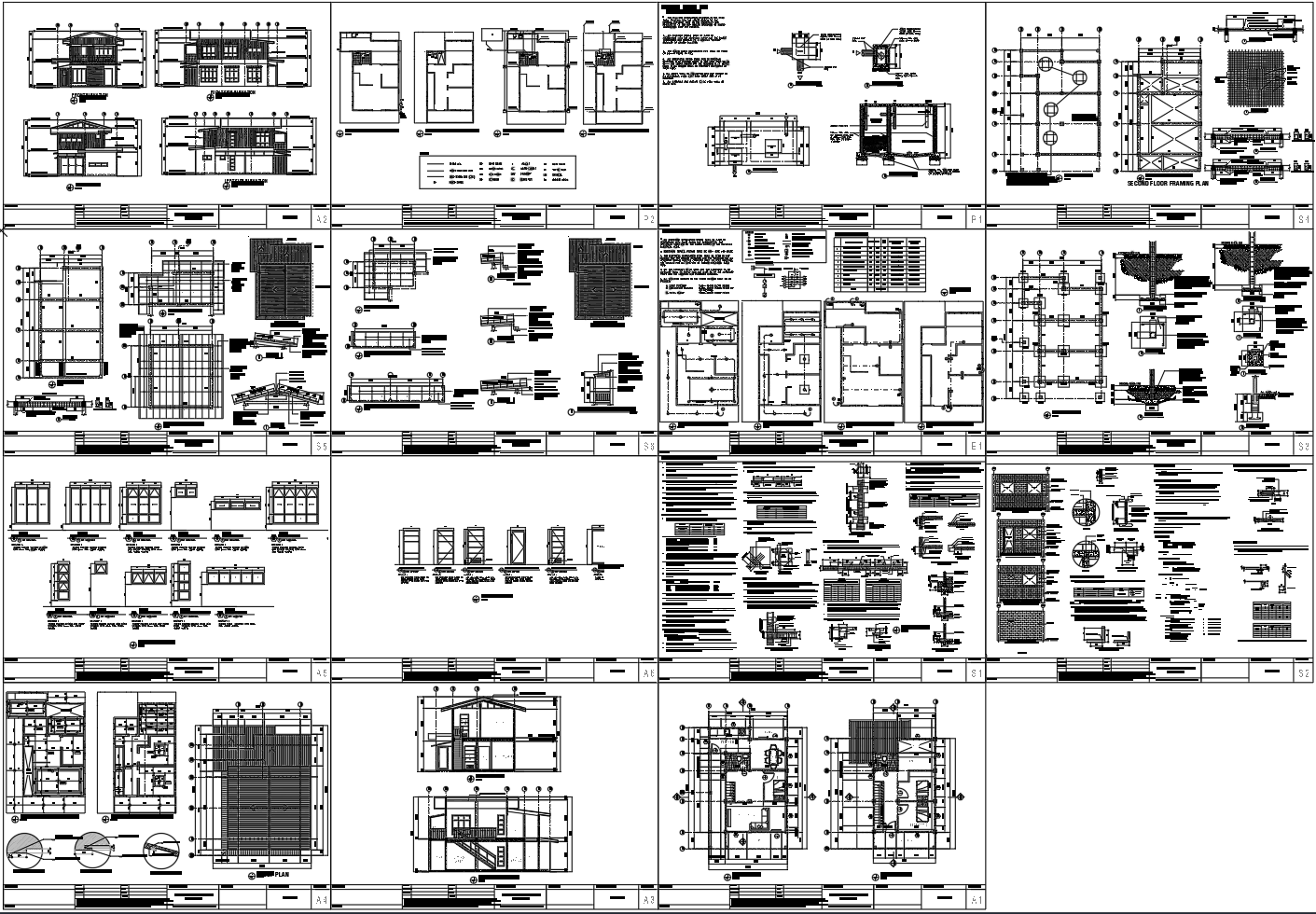

This AutoCAD DWG complete plan features a two-storey residential house design located in Bagong Sikat, San Mariano, Roxas, Oriental Mindoro. The file includes a full architectural, structural, plumbing, and electrical layout, making it a comprehensive design package for architects, civil engineers, and construction professionals.

The architectural set includes floor plans, elevations, sections, and roof layouts, providing precise dimensional and design references. The structural drawings feature foundation details, column and beam reinforcements, slab layouts, and general construction notes following ACI 318 and AISC standards. The MEP layout covers waterline, drainage, and sanitary systems, along with electrical lighting and power distribution plans, breaker schedules, and riser diagrams.

Each sheet is carefully annotated with bar schedules, window and door details, and rafter framing diagrams, ensuring practical execution on-site. This DWG serves as an excellent reference for those designing or constructing modern two-storey homes with full compliance to structural and MEP requirements.
