Public Housing Second Storey Layout With Parking and Access Links

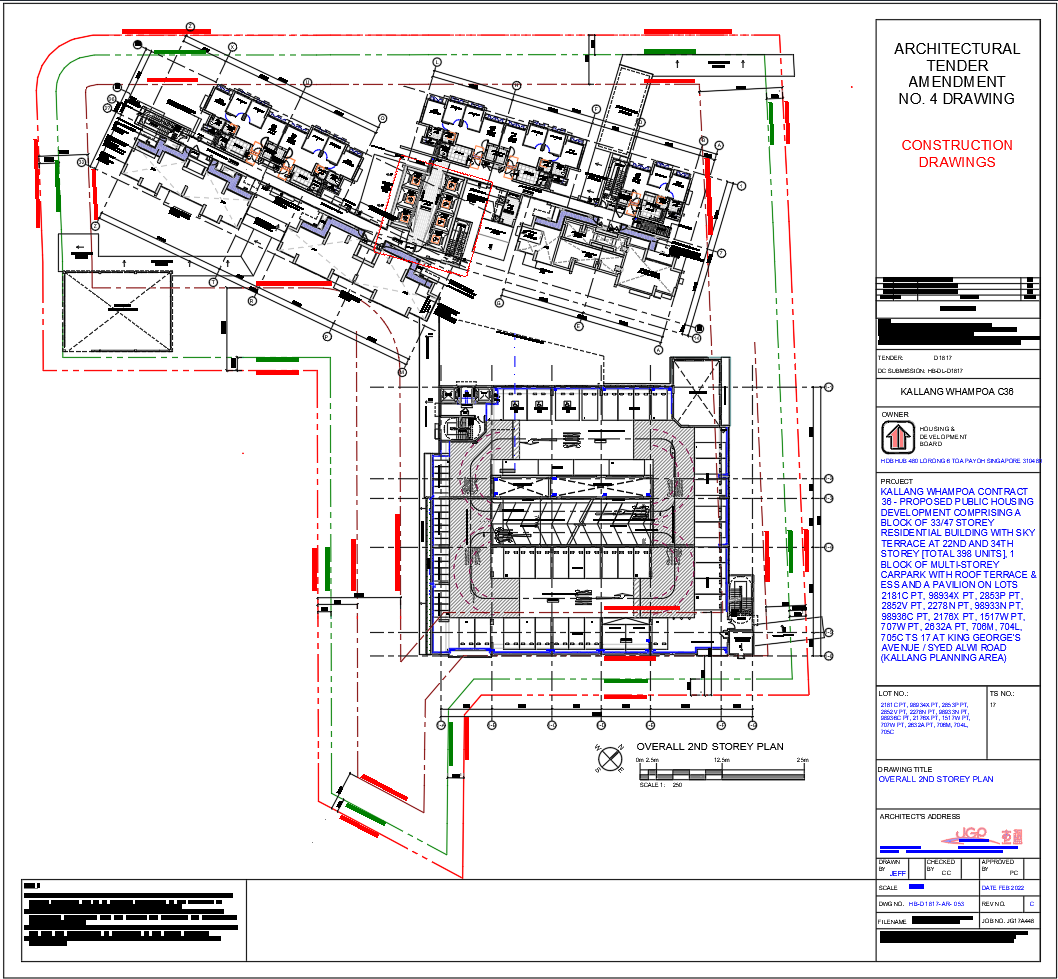

This AutoCAD DWG second-storey layout illustrates the public housing design under the Kallang Whampoa Contract 36 project, comprising a 33/47-storey residential building with sky terraces at the 22nd and 34th levels and a multi-storey carpark (MSCP). The plan highlights the overall 2nd storey configuration, detailing linkways, corridors, staircases, carpark zones, and ramp gradients (1:10–1:12) designed for smooth vehicular and pedestrian flow.

The drawing includes bedroom layouts, living/dining zones, kitchens, service yards, and household shelters for each residential unit type (Type 3R and Type 4R). Each area integrates precast parapet walls (1.1m high), galvanised steel railings, trellis structures, and expanded aluminium mesh rainscreens for ventilation and façade design.

Additional features such as 6.0m driveways, green buffer lines, planting strips (2.0m), and low/high covered linkways ensure environmental balance and accessibility. Verified by JGP Architecture (S) Pte Ltd, this DWG is ideal for architects, civil engineers, and planners involved in urban housing and carpark structure design.
