3BHK Apartment Layout Plan Tower C The Elegencia With Balconies
Description

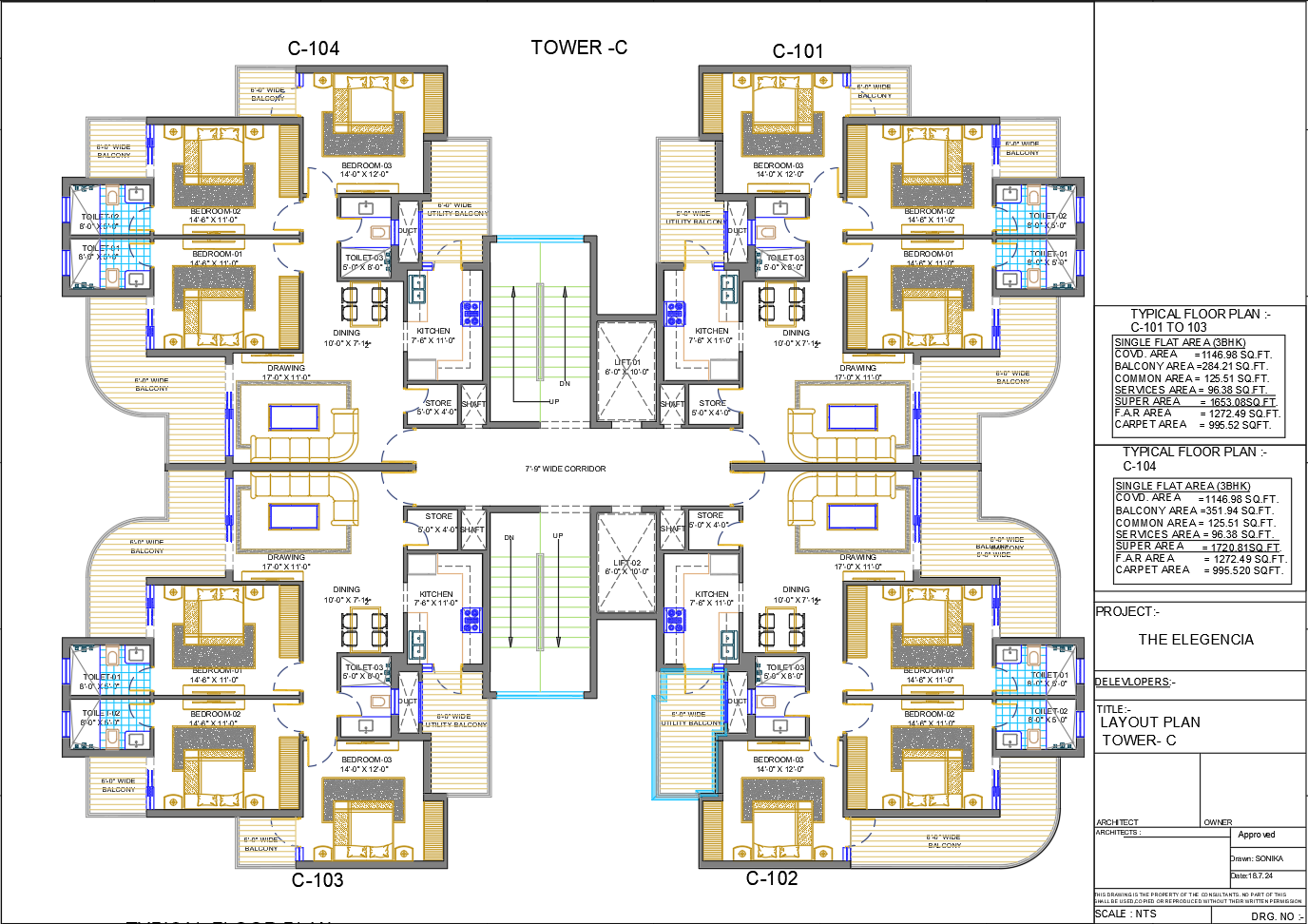

This AutoCAD DWG layout plan represents the typical floor plan of Tower C – The Elegancia, featuring a 3BHK apartment design with modern spatial organisation and open balconies. Each flat (C-101 to C-104) includes three bedrooms, a spacious drawing room (17'-0"x11'-0"), dining area (10'-0"x7'-11"), and kitchen (7'-6"x11'-0"), ensuring functional circulation and natural ventilation.
The super built-up area ranges from 1653.08 sq ft to 1720.81 sq ft, with carpet areas of 995.52 sq ft and balcony areas up to 351.94 sq ft. The design includes three toilets (8'-0"x5'-0", 5'-0"x8'-0"), utility balconies (6'-0" wide), and a store room (5'-0"x4'-0") for added storage efficiency. A 7'-9" wide corridor and lift cores (6'-0"x10'-0") connect the units conveniently across the tower.
This DWG plan offers a balanced mix of luxury and practicality, ideal for architects, civil engineers, and developers involved in apartment and residential tower projects.
