Villa First Floor Electrical Layout Plan With Rooms And Balconies

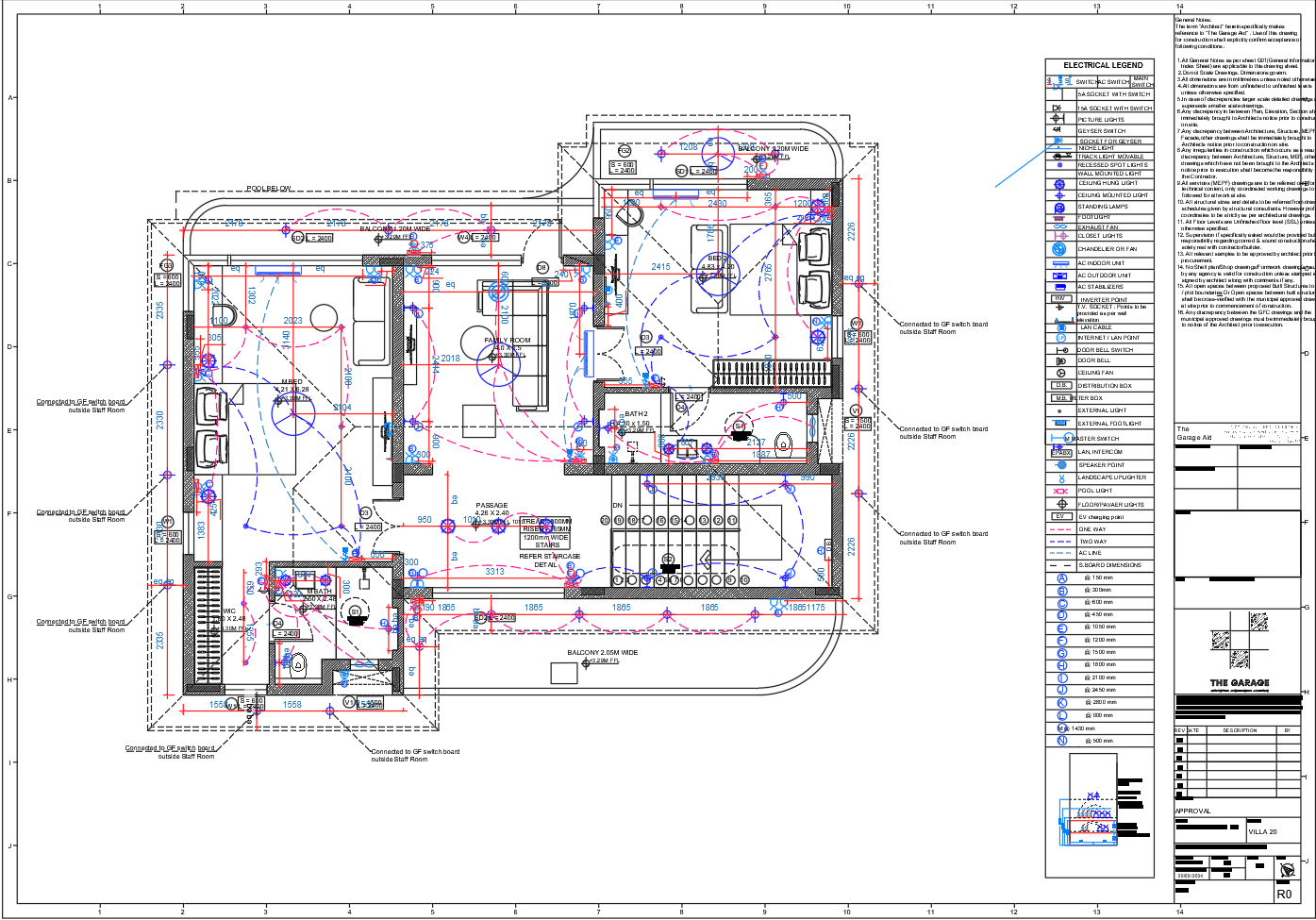

This AutoCAD DWG villa's first-floor electrical layout plan presents a detailed residential electrical design with accurate point coordination and room-wise planning. The drawing covers major spaces, including a family room sized 4.0 m by 6.5 m master bedroom measuring 4.21 m by 6.28 m with a walk-in closet of 1.60 m by 2.48 m bedroom 2 sized 4.83 m by 4.20 m, and a bathroom of 2.50 m by 2.48 m. Electrical symbols clearly indicate switchboards, lighting fixtures, power sockets, AC indoor and outdoor unit points, geyser connections, TV console with LAN Ethernet points, and distribution board locations. Conduit routing and switching control zones are shown for smooth on-site execution.

The plan also highlights circulation and external areas, including a passage of 4.26 m by 2.40 m, two balconies with widths of 2.05 m and 1.20 m, and a staircase designed with a 300 mm tread, 165 mm rise, and 1200 mm width. Skylight provisions are marked to support natural lighting integration with electrical planning. Each electrical component is referenced through a detailed legend, ensuring clarity and construction accuracy. This DWG file is suitable for architects, civil engineers, electrical contractors, and MEP consultants who require a coordinated villa electrical layout for residential construction planning and implementation.?
