Column Footing Reinforcement Detail Plan 200x450 and 450x450 DWG

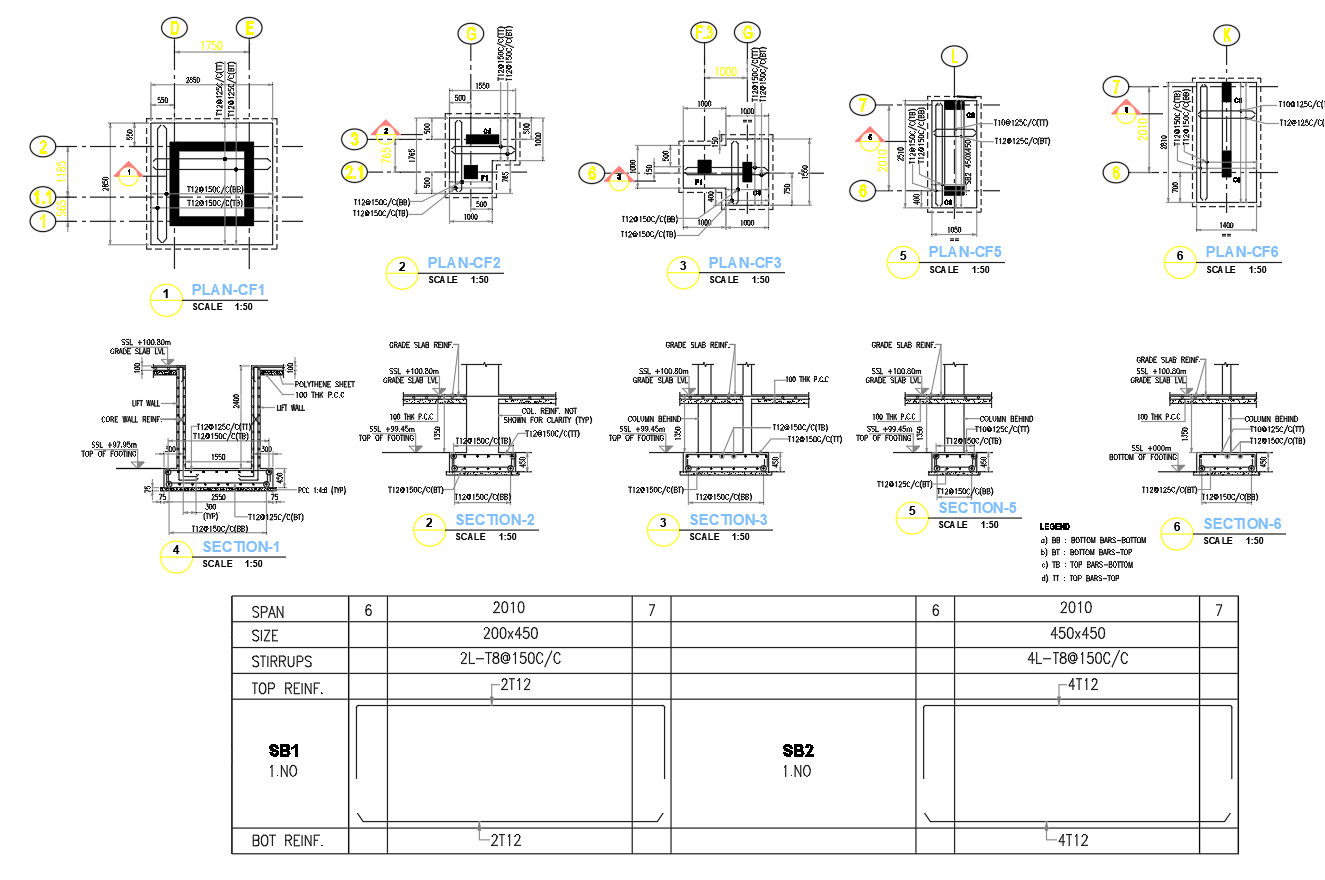

This DWG file provides detailed column footing reinforcement plans, including CF1 to CF6 layouts with precise dimensions, reinforcement placement and section details. Each footing is clearly labelled with grid references to simplify on-site marking and construction execution.

The drawing includes reinforcement schedules for different footing sizes such as 200x450 mm and 450x450 mm, along with bar arrangements like T12 @ 150 c/c for top and bottom reinforcements. Also included are sectional views showing grade slab level, PCC thickness, column base connections and footing depth to ensure accurate structural implementation.

A reinforcement table is provided for a span of 2010 mm, showing top and bottom bars for SB1 and SB2 elements, enabling quick steel calculation and fabrication. This file is highly useful for architects, civil engineers, builders and structural drafting professionals requiring precise footing construction details.
