Reinforced Concrete Compound Wall Section Details with Footing Specs

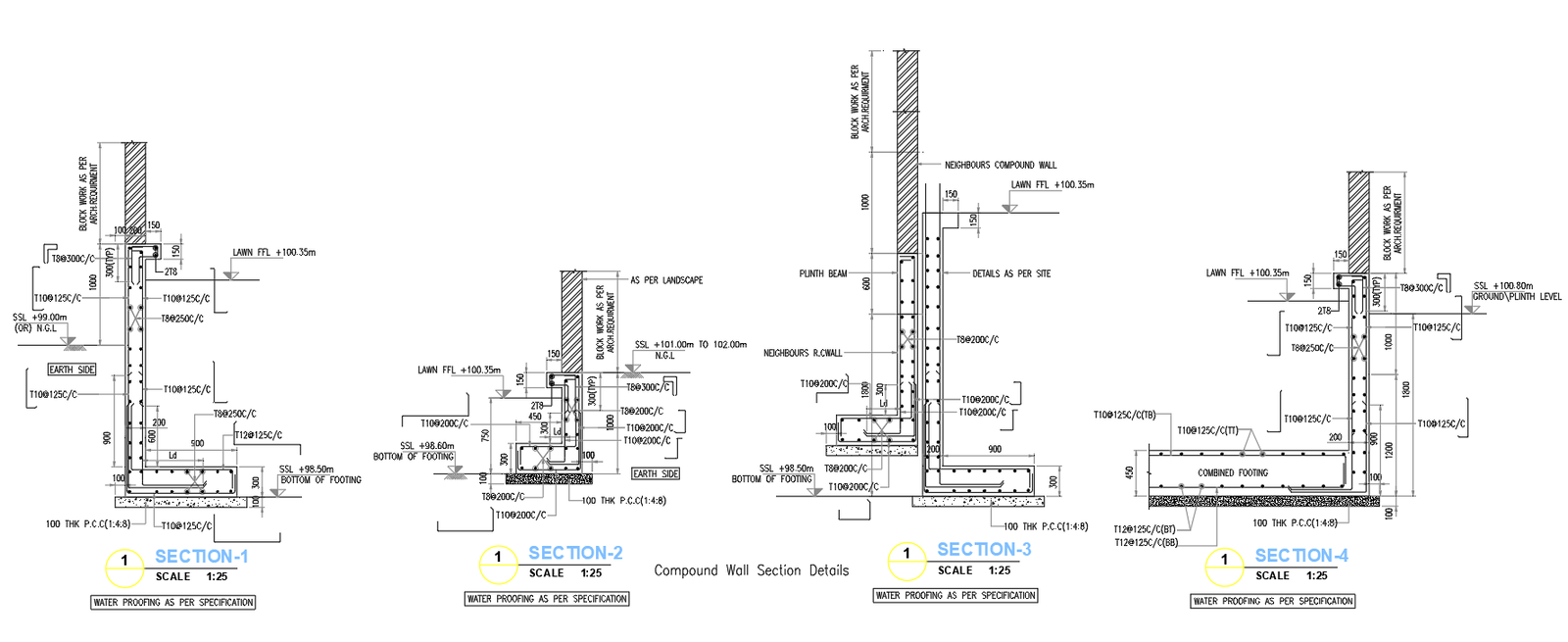

This AutoCAD DWG compound wall section detail provides clear construction references for reinforced concrete wall execution. The drawing includes sectional views, reinforcement bar placement, footing dimensions, plinth levels, PCC thickness, and slab elevation data.

Footing and Reinforcement Details

The drawing highlights 100mm thick PCC (1:4:8), bottom of footing levels, SSL levels, and wall heights. Reinforcement information includes T10 @ 125 C/C, T8 @ 250 C/C, T12 bars (top/bottom), and plinth beam reinforcement. Each section is labeled with scale 1:25 for easy interpretation onsite.

Site and Application Use

This wall detail is suitable for site boundary wall construction, landscape retaining edges, and compound perimeter walls. The drawing ensures stability against soil side pressure and includes waterproofing instructions as per project specifications.

This file is ideal for architects, civil engineers, contractors, and structural detailers who require precise compound wall sectional details for working drawings and execution.
