Stilt Roof Framing Plan Tower L with 230x500 230x625 Beam Details DWG

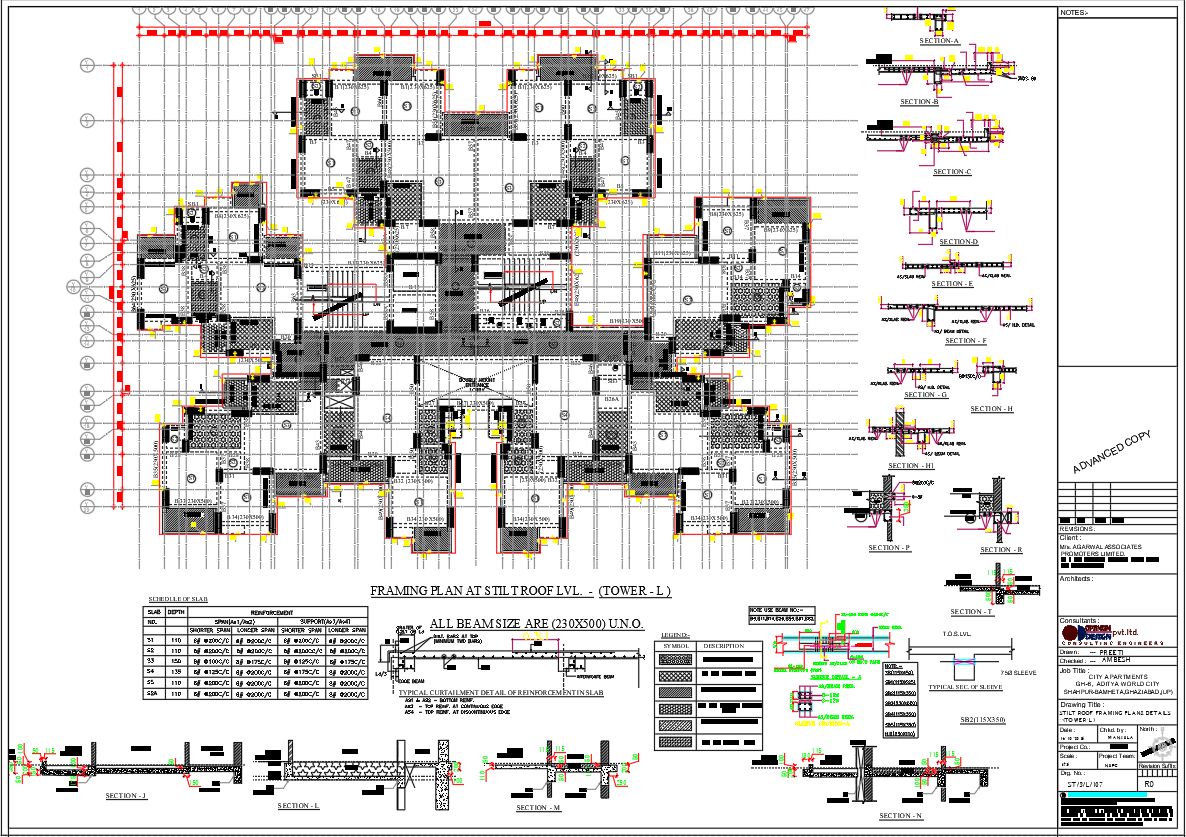

This AutoCAD DWG file features a Stilt Roof Framing Plan for Tower L, showing a complete RCC structural layout with 230x500, 230x625, 230x350, and 230x450 mm beam sizes marked across grid lines. The drawing includes slab reinforcement schedule, slab sunk levels of 50mm and 100mm, edge beam reinforcements, beam curtaining details, and section references for construction accuracy. Clear labelling of Y and X grid coordinates helps in precise execution on site. The file also provides typical slab reinforcement notes, HB (Hidden Beam) detailing, and sectional drawings for beam-to-beam and beam-to-slab joints. This drawing is highly valuable for architects, civil engineers, structural designers, contractors, and AutoCAD professionals who need accurate guidance on stilt roof framing for multi-storey residential or commercial building projects.
