Medical College-Hospital Architecture Plan with Classrooms And Wards

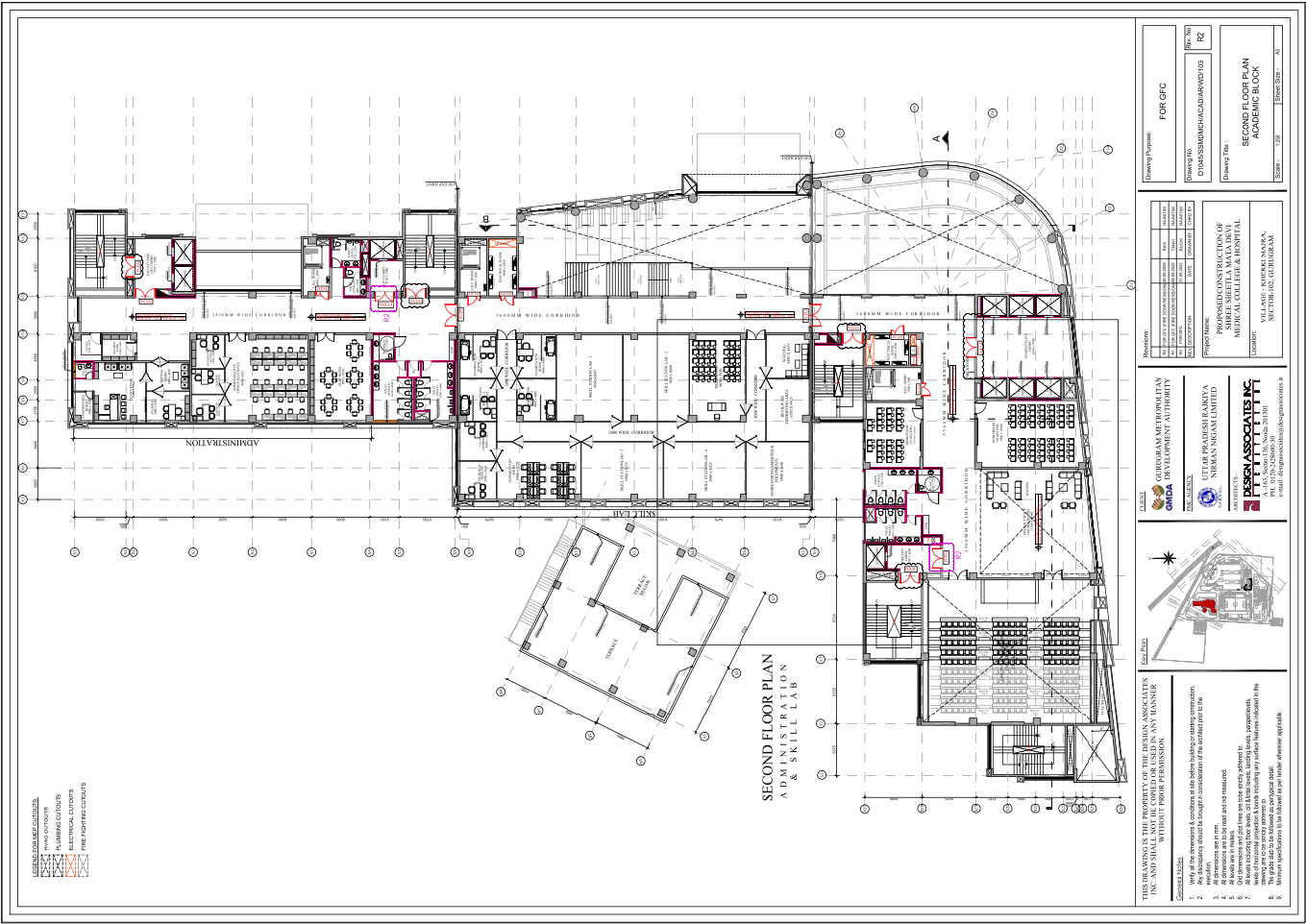

This AutoCAD DWG file contains the Second Floor Architectural Plan of a Medical College and Teaching Hospital, showing a complete functional layout including lecture classrooms, laboratory rooms, faculty rooms, outpatient consultation spaces, patient wards, nursing station, record room, pharmacy space, emergency access corridors, service shafts, and stair & lift cores.

The plan clearly labels room names, door-window placements, column grid references, wall thicknesses, ventilation provisions, and fire escape routes.

Typical room dimensions include:

• Lecture Hall approx. 28’ x 42’

• General Ward approx. 22’ x 30’ with organised bed arrangement

• Consultation Rooms approx. 12’ x 14’

• Laboratories approx. 20’ x 28’

Wide corridor circulation and separate clean–utility flow are maintained to meet medical planning standards.

This drawing is fully editable, suitable for hospital architects, medical college planners, civil engineers, contractors, healthcare facility designers, and AutoCAD/Revit learners needing real reference drawings for academic or project development use.
